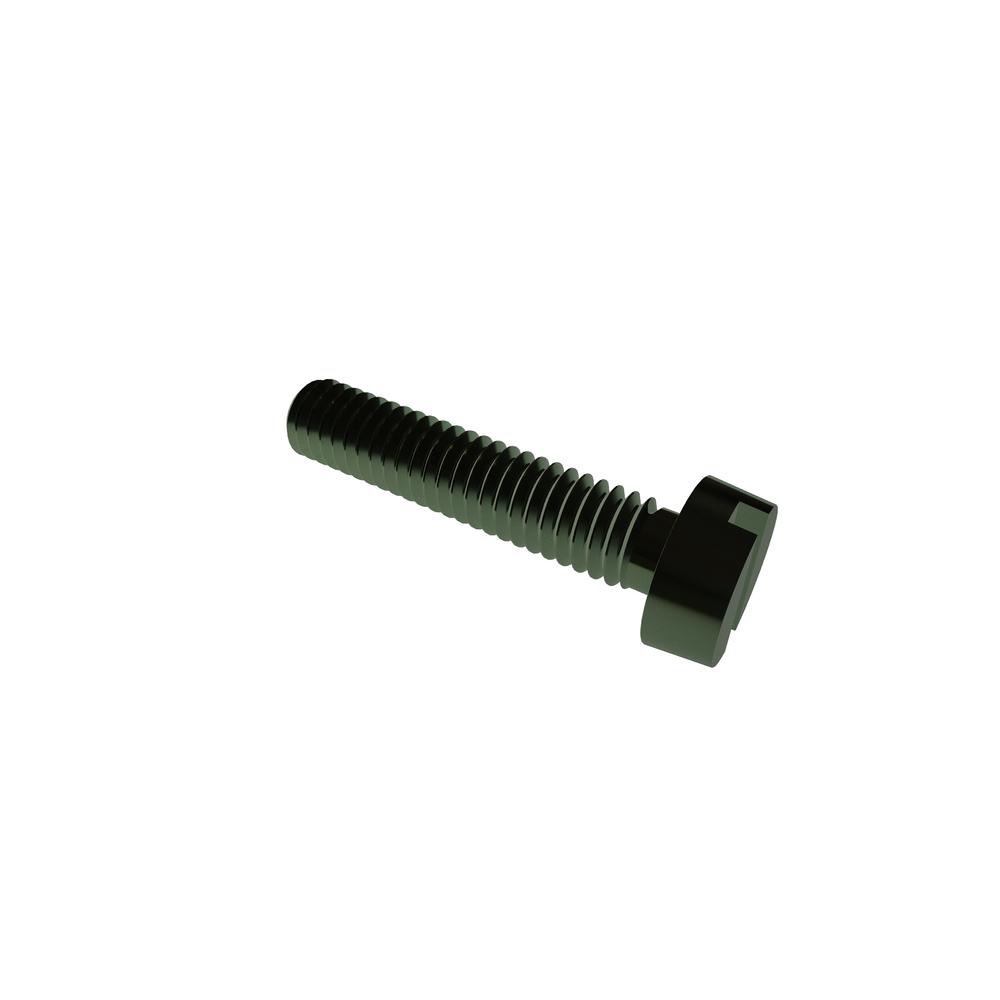

M2.5-.45 X 12 SLOT CHEESE STL ZN CR3
.25S12SCMZR-NONROHS
| Item Id | .25S12SCMZR-NONROHS |
| Description | M2.5-.45 X 12 SLOT CHEESE STL ZN CR3 |
| Alternate Codes | .25S12SCMZR, 91460A077 |
| Extended Description | DIN84 |
| Packaging | EA |
| Additional Industry Cross Reference | 91460A077 |
| Drive Type | Slotted |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 4.50 mm |
| Head Diameter (Min.) | 4.32 mm |
| Head Height (Max.) | 1.80 mm |
| Head Height (Min.) | 1.66 mm |
| Head Type | Cheese |
| Length | 12mm |
| Material | Steel |
| Nominal Diameter | 2.50 mm |
| RoHS | Compliant |
| Slot Depth (Min.) | 0.70 mm |
| Slot Width (Max.) | 0.80 mm |
| Slot Width (Min.) | 0.66 mm |
| Thread Size | M2.5x0.45 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
