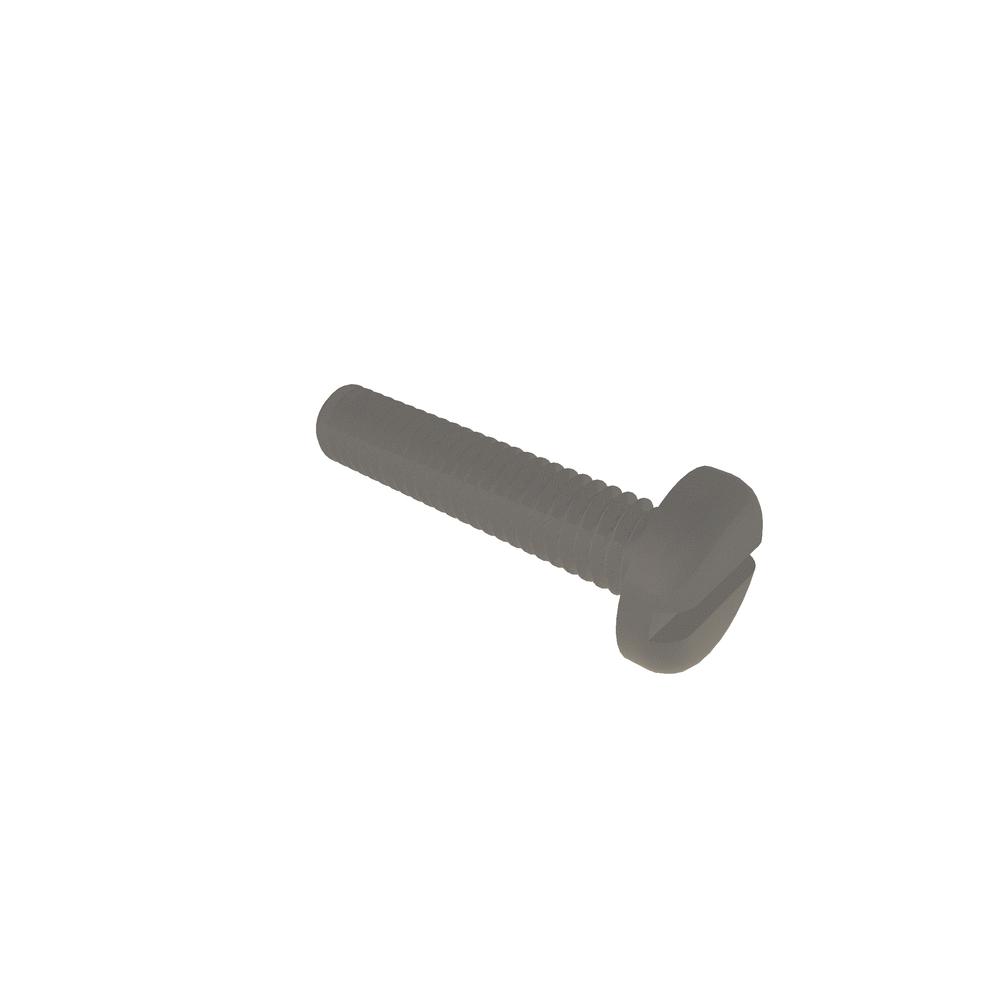

.25S12SPMN
M2.5-.45 X 12 SLOT PAN HD NYL
Alternate Codes: N/A
M2.5-.45 X 12 Slotted Pan Head Nylon RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.466 | $0.245 | $0.194 | $0.179 | $0.150 | Larger Quantities |
In Stock
| Thread Size | M2.5x0.45 |
| Material | Nylon |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.50 mm |
| Head Type | Pan |
| Drive Type | Slotted |
| Head Radius (Min.) | 1.00 mm |
| Slot Depth (Min.) | 0.60 mm |
| Slot Width (Min.) | 0.60 mm |
| Slot Width (Max.) | 0.80 mm |
| Body Diameter (Min.) | 2.12 mm |
| Brand | VARIED |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 2.50 mm |
| Head Diameter (Max.) | 5.00 mm |
| Head Diameter (Min.) | 4.70 mm |
| Head Height (Max.) | 1.50 mm |
| Head Height (Min.) | 1.30 mm |
