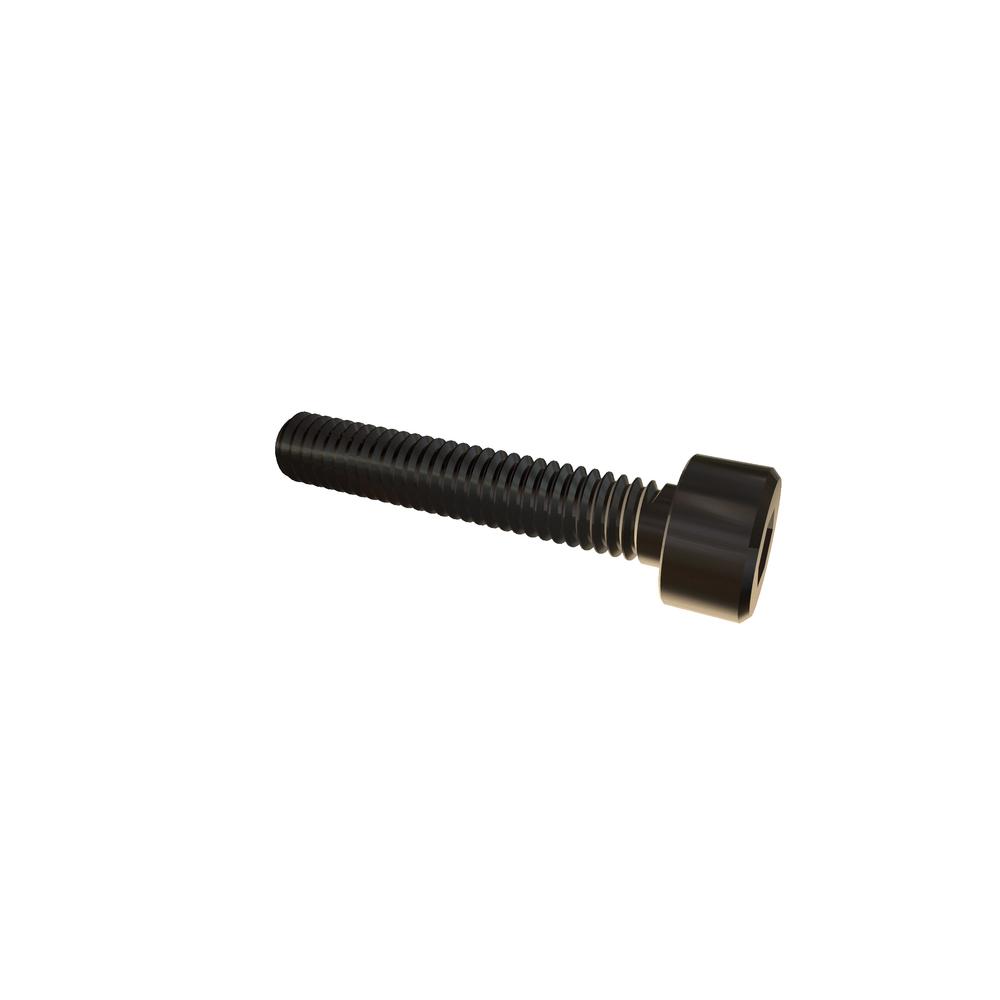

M2.5-.45 X 14 SOC CAP 316SST 954-203 TFE
.25S14SHC3/954-203
| Item Id | .25S14SHC3/954-203 |
| Description | M2.5-.45 X 14 SOC CAP 316SST 954-203 TFE |
| Extended Description | RoHS |
| Packaging | EA |
| Body Diameter (Max.) | 2.50 mm |
| Drive Type | Hex Socket |
| Finish | 954-203 Teflon Coating |
| Head Diameter (Max.) | 4.50 mm |
| Head Diameter (Min.) | 4.33 mm |
| Head Height (Max.) | 2.50 mm |
| Head Height (Min.) | 2.40 mm |
| Head Type | Socket |
| Hex Socket Size | 2.00 mm |
| Key Engagement (Min.) | 1.25 mm |
| Material | 316 Stainless Steel |
| Meets (Standard) | ASME B18.3.1M |
| Thread Size | M2.5x0.45 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
