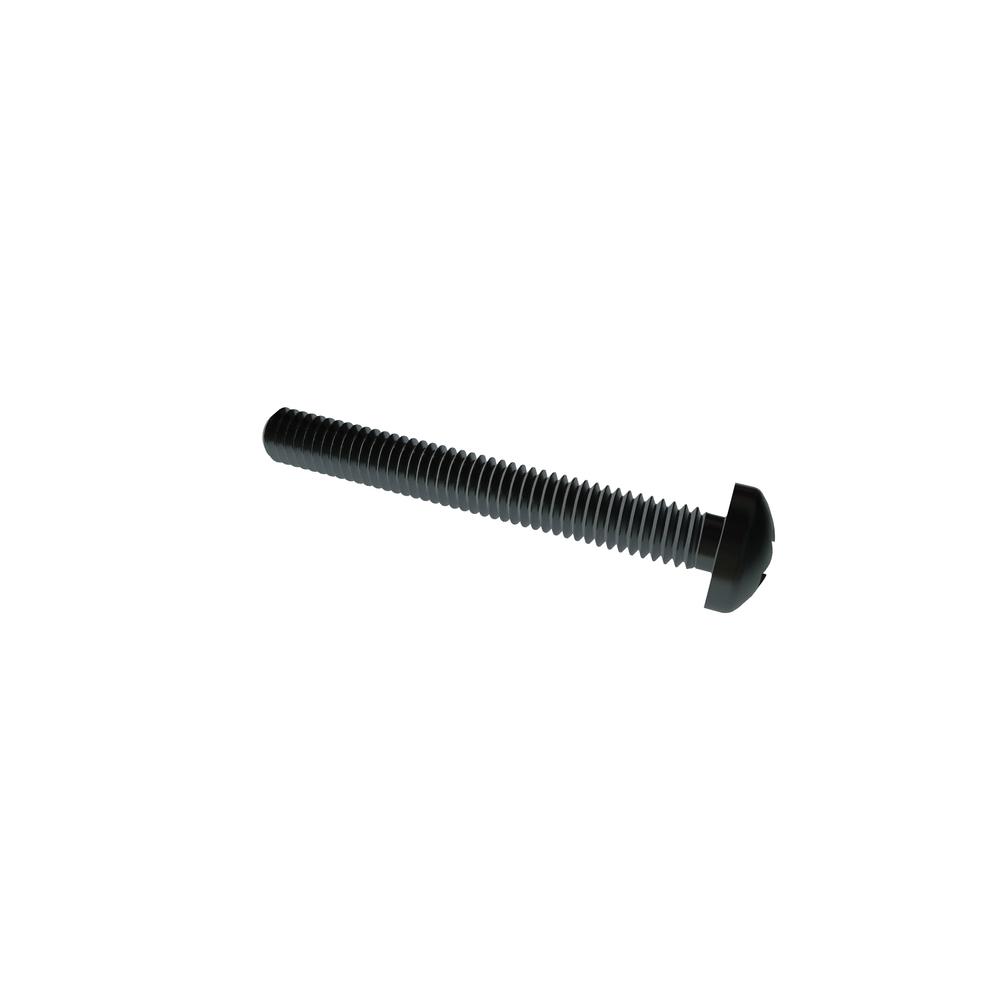

Defaultimage2 .25S20PPMZR M2.5-.45 X 20 PH PAN STL ZN CR3



  • Item Id: .25S20PPMZR
  • Description: M2.5-.45 X 20 PH PAN STL ZN CR3
  • Extended Description:
  • Quantity on Hand: 0
  • Packaging: EA
  • Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
    • Additional Industry Cross Reference92005A077
    Body Diameter (Max.)2.50 mm
    Body Diameter (Min.)2.12 mm
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishZinc Cr3
    Head Diameter (Max.)5.00 mm
    Head Diameter (Min.)4.70 mm
    Head Height (Max.)2.10 mm
    Head Height (Min.)1.96 mm
    Head Radius (Min.)4.00 mm
    Head TypePan
    MaterialSteel
    Meets (Standard)B18.6.7M
    Nominal Diameter2.50 mm
    Recess Depth (Max.)1.55 mm
    Recess Depth (Min.)1.15 mm
    Recess Diameter2.68 mm
    RoHSCompliant
    Thread SizeM2.5x0.45
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.25S20PPMSM2.5-.45 X 20 PH PAN SST RoHSView Details
