.25S3BHCAR
M2.5-.45 X 3 BUT SOC ALLOY
Alternate Codes: N/A

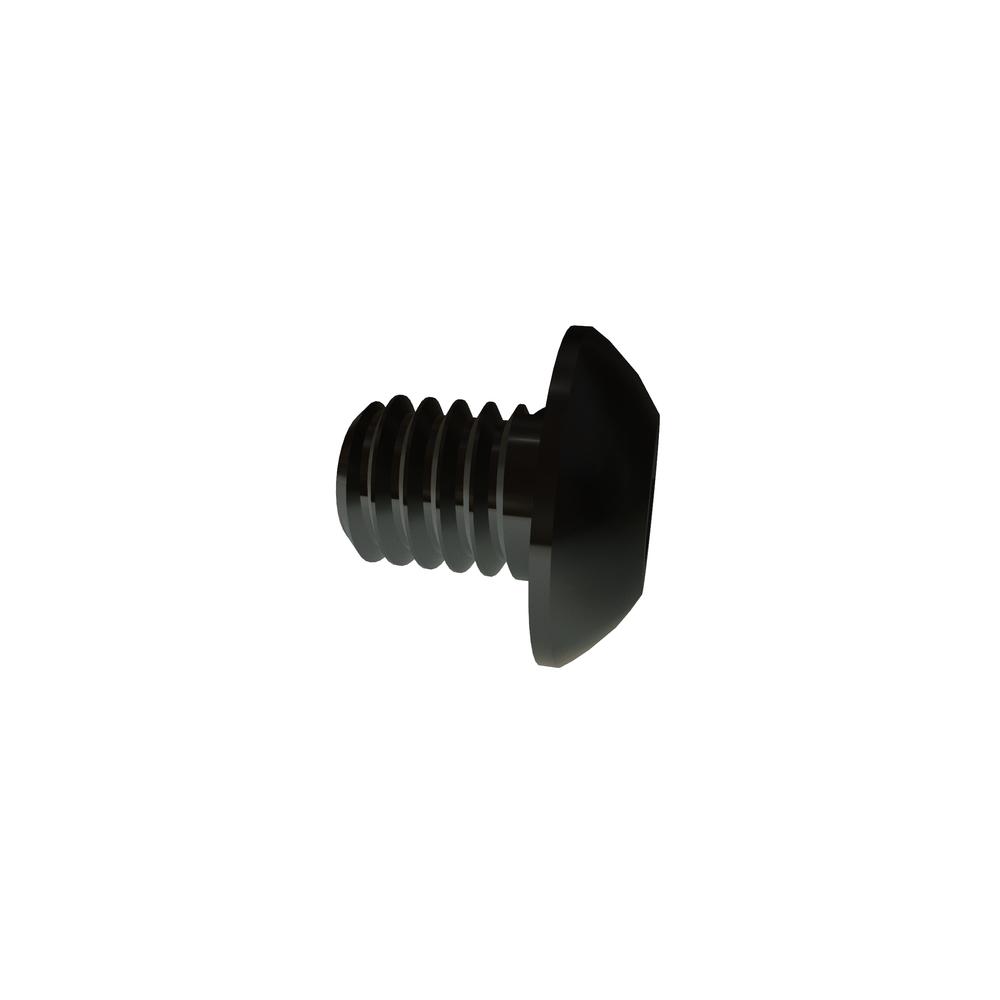

M2.5-.45 X 3 Button Socket ISO 7380 10.9 Alloy ZN RoHS
Pricing per Unit
| 1-99 pcs |
|---|
| $1.301 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M2.5x0.45 |
| Material | Alloy Steel |
| Finish | Zinc Clear |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.5 mm |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 2.77 mm |
| Fillet Transition Diameter (Max.) | 3.02 mm |
| Head Side Height (Ref.) | 0.25 mm |
| Key Engagement | 0.80 mm |
| Brand | VARIED |
| Length | 3mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 4.75 mm |
| Head Diameter (Min.) | 4.45 mm |
| Head Height (Max.) | 1.37 mm |
| Head Height (Min.) | 1.15 mm |
| Hex Socket Size | 1.52 mm |
| Fastener Strength Grade/Class | 10.9 |
