  • Item Id: .25S3PPMS

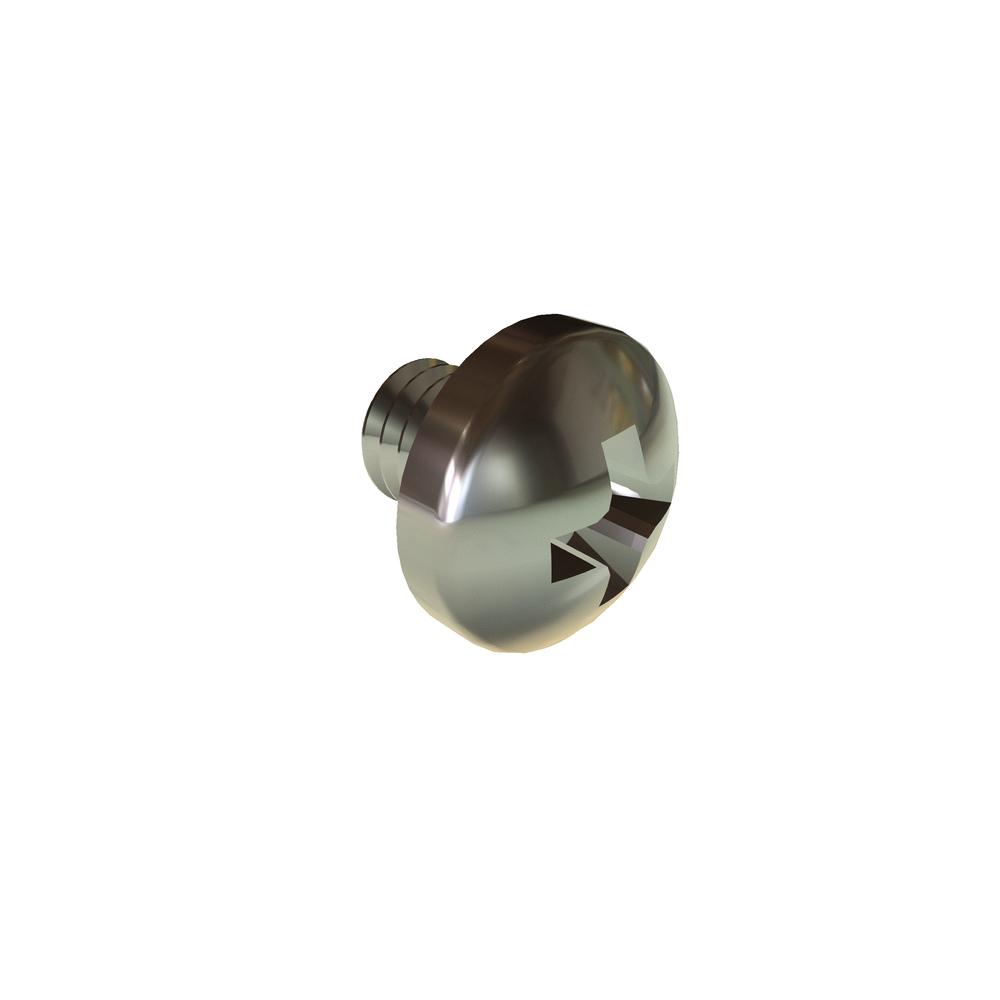

  • Description: M2.5-.45 X 3 PH PAN SST RoHS
  • Alternate Codes: BN660 M2.5X3
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 999Call For
    $0.276$0.145$0.115$0.106Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference92000A100
    Body Diameter (Max.)2.50 mm
    Body Diameter (Min.)2.12 mm
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)5.00 mm
    Head Diameter (Min.)4.70 mm
    Head Height (Max.)2.10 mm
    Head Height (Min.)1.96 mm
    Head Radius (Min.)4.00 mm
    Head TypePan
    MaterialStainless Steel
    Meets (Standard)B18.6.7M
    Nominal Diameter2.50 mm
    Recess Depth (Max.)1.55 mm
    Recess Depth (Min.)1.15 mm
    Recess Diameter2.68 mm
    RoHSCompliant
    Thread SizeM2.5x0.45
    Thread TypeMetric Coarse
    UnitsMetric
