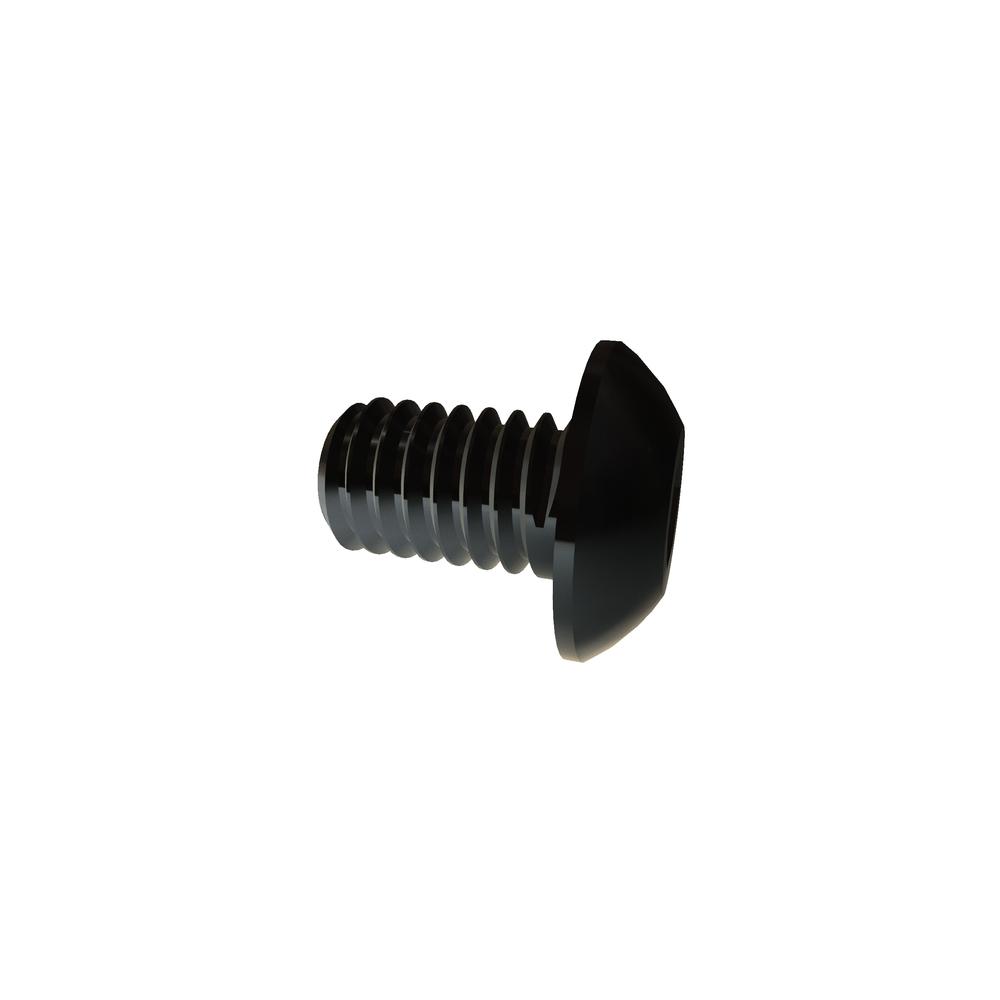

Image for reference purposes only. Actual product may vary.
.25S4BHCA
M2.5-.45 X 4 BUT SOC ALLOY
Alternate Codes: BN19 M2.5X4
M2.5-.45 X 4 Button Socket 10.9 Alloy RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 2.5 mm |
| Length | 4mm |
| Thread Size | M2.5x0.45 |
| Finish | Plain |
| Material | Alloy Steel |
| Head Type | Button |
| Drive Type | Hex Socket |
| Head Height (Max.) | 1.37 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Fillet Transition Diameter (Min.) | 2.77 mm |
| Fillet Transition Diameter (Max.) | 3.02 mm |
| Head Side Height (Ref.) | 0.25 mm |
| Key Engagement | 0.80 mm |
| Additional Industry Cross Reference | 91239A753 |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 4.75 mm |
| Head Diameter (Min.) | 4.45 mm |
| Head Height (Min.) | 1.15 mm |
| Hex Socket Size | 1.52 mm |
