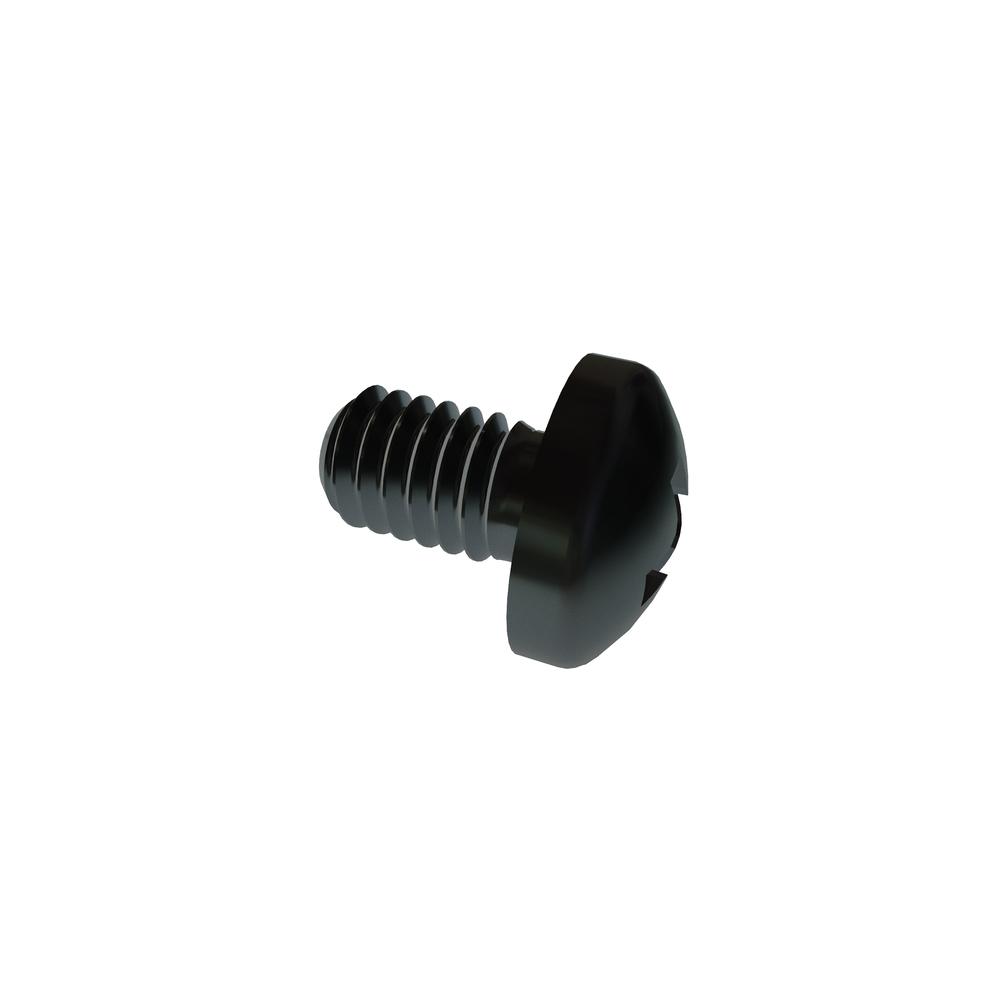

Defaultimage2 .25S4PPMZR M2.5-.45 X 4 PH PAN STL ZN CR3



  • Item Id: .25S4PPMZR
  • Description: M2.5-.45 X 4 PH PAN STL ZN CR3
  • Alternate Codes: 49-0003-040, 761-0008-01
  • Quantity Discounts:
    1 to 249250 to 499500 to 9991000 to 2499Call For
    $0.122$0.073$0.061$0.050Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
    • Additional Industry Cross Reference92005A056
    Body Diameter (Max.)2.50 mm
    Body Diameter (Min.)2.12 mm
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishZinc Cr3
    Head Diameter (Max.)5.00 mm
    Head Diameter (Min.)4.70 mm
    Head Height (Max.)2.10 mm
    Head Height (Min.)1.96 mm
    Head Radius (Min.)4.00 mm
    Head TypePan
    MaterialSteel
    Meets (Standard)B18.6.7M
    Nominal Diameter2.50 mm
    Recess Depth (Max.)1.55 mm
    Recess Depth (Min.)1.15 mm
    Recess Diameter2.68 mm
    RoHSCompliant
    Thread SizeM2.5x0.45
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.25S4PPMNM2.5-.45 X 4 PH PAN NYLView Details
.25S4PPMSM2.5-.45 X 4 PH PAN SSTView Details
.25S4PPMS/PM2.5-.45 X 4 PH PAN PATCH SST RoHSView Details
.25S4PPMZBM2.5-.45 X 4 PH PAN STL BLK RoHSView Details
