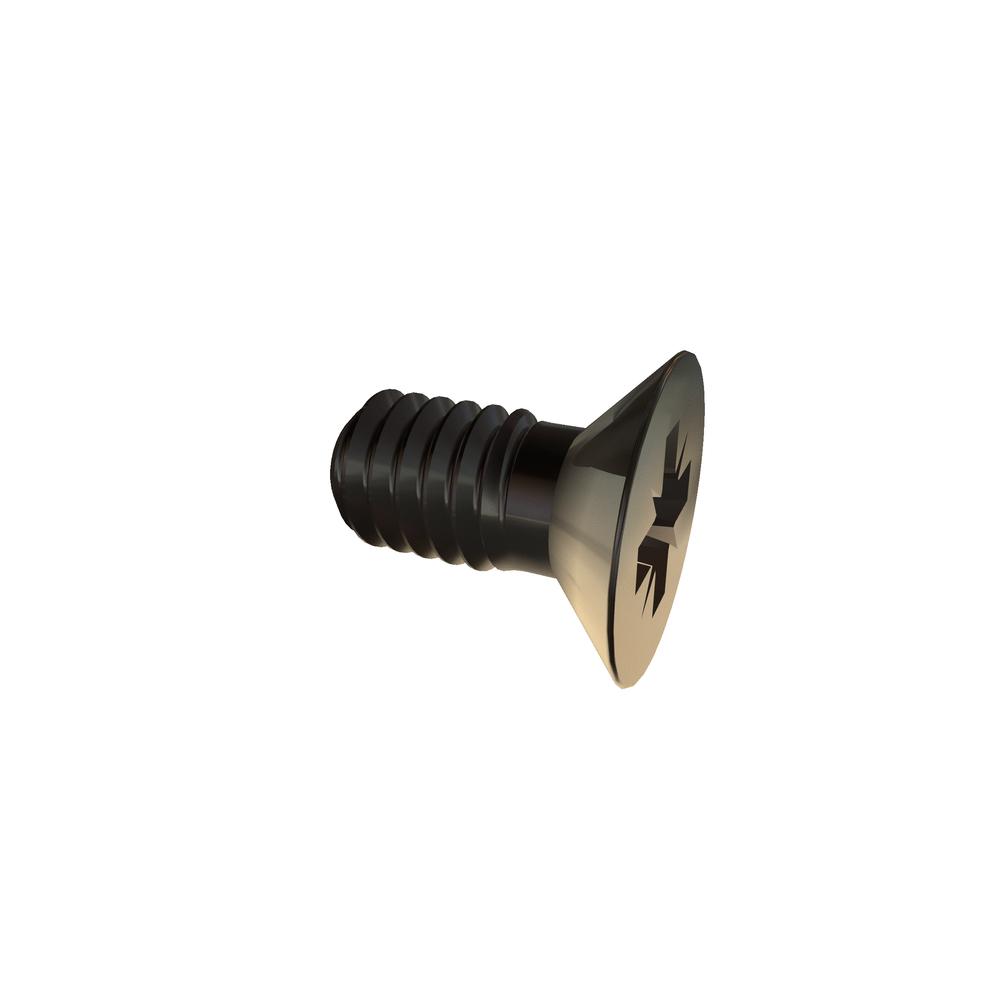

M2.5-.45 X 5 POZI FLAT 316 SST RoHS
.25S5ZFM3
| Item Id | .25S5ZFM3 |
| Description | M2.5-.45 X 5 POZI FLAT 316SST RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Pozi |
| Finish | Plain |
| Head Diameter (Max.) | 4.70 mm |
| Head Diameter (Min.) | 4.40 mm |
| Head Height | 1.50 mm |
| Head Type | Flat |
| Length | 5mm |
| Material | 316 Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 2.50 mm |
| Recess Depth (Max.) | 1.73 mm |
| Recess Depth (Min.) | 1.48 mm |
| Recess Diameter | 2.80 mm |
| Recess Width | 0.70 mm |
| RoHS | Compliant |
| Thread Size | M2.5x0.45 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
