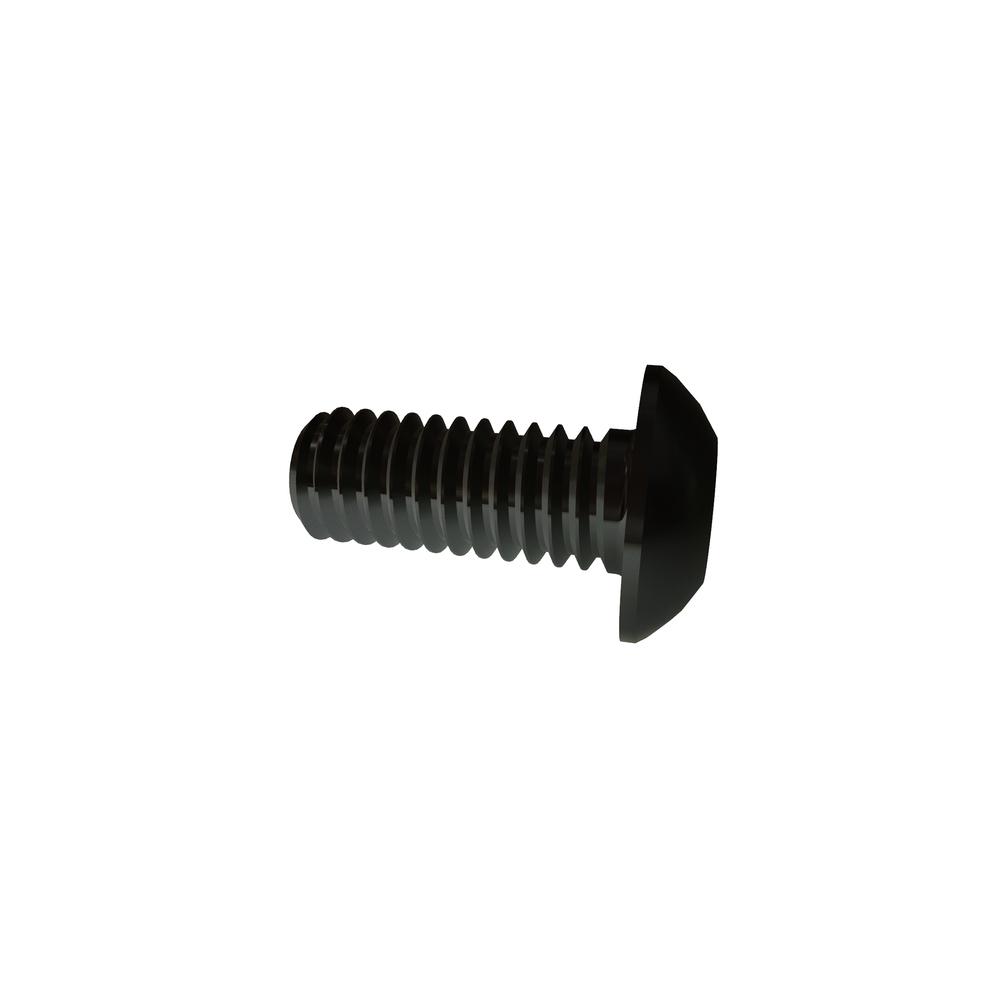

M2.5-.45 X 6 BUT SOC ALLOY
.25S6BHCAR/AA0996
| Item Id | .25S6BHCAR/AA0996 |
| Description | M2.5-.45 X 6 BUT SOC 10.9 ALLOY ZN RoHS |
| Extended Description | 203 Silver Dri-Loc Equivalent |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Fastener Strength Grade/Class | 10.9 |
| Fillet Transition Diameter (Max.) | 3.02 mm |
| Fillet Transition Diameter (Min.) | 2.77 mm |
| Finish | Zinc Clear |
| Head Diameter (Max.) | 4.75 mm |
| Head Diameter (Min.) | 4.45 mm |
| Head Height (Max.) | 1.37 mm |
| Head Height (Min.) | 1.15 mm |
| Head Side Height (Ref.) | 0.25 mm |
| Head Type | Button |
| Hex Socket Size | 1.52 mm |
| Key Engagement | 0.80 mm |
| Length | 6mm |
| Locking Element | 203 Silver Dri-Loc Equivalent |
| Material | Alloy Steel |
| Meets (Standard) | ASME B18.3.4M |
| Nominal Diameter | 2.5 mm |
| RoHS | Compliant |
| Thread Size | M2.5x0.45 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
