.25S6PPLZR/JIS
M2.5-.45 X 6 PHIL PAN SPLIT L/W SEMS
Alternate Codes: N/A

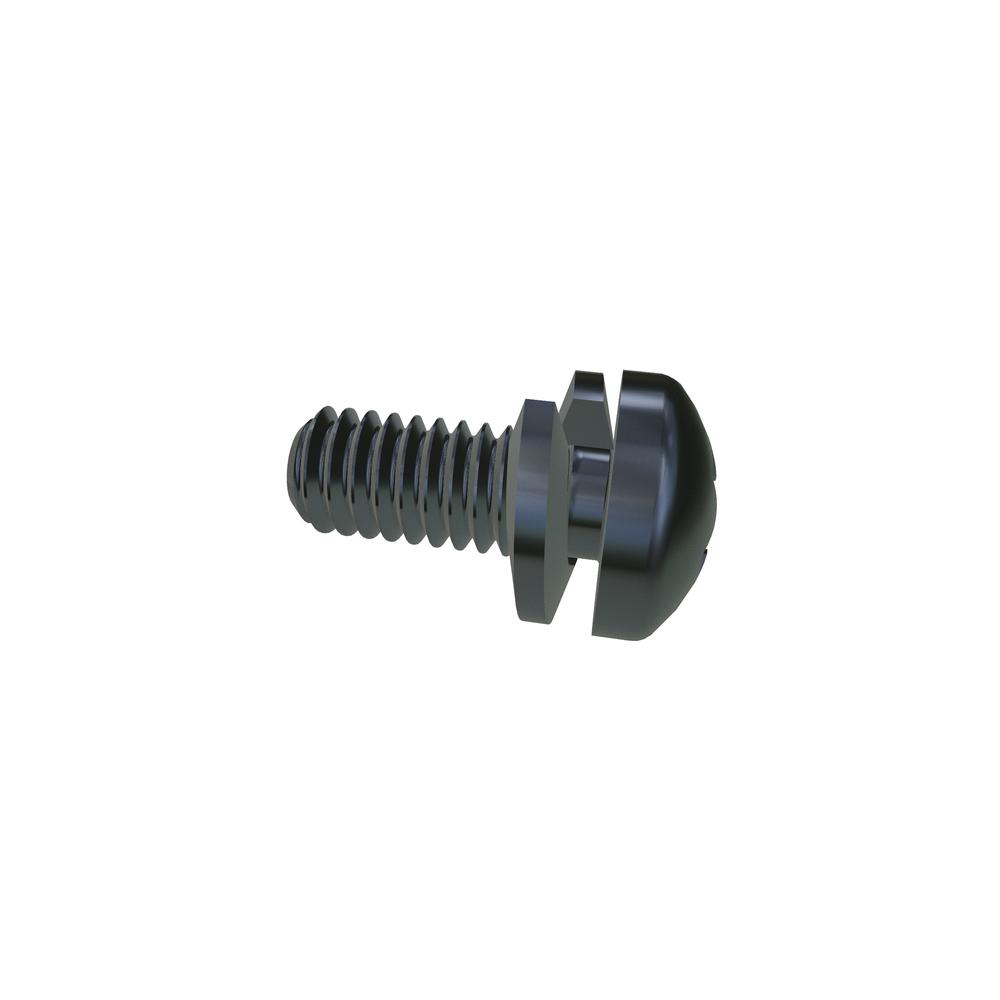

M2.5-.45 X 6 Phillips Pan Split Lock Washer Sems JIS-B1188 Steel Zinc RoHS
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs |
|---|---|---|---|---|
| $0.213 | $0.128 | $0.107 | $0.087 | $0.077 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M2.5x0.45 |
| Material | Steel |
| Finish | Zinc Clear |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.50 mm |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Outside Diameter (Min.) | 4.60 mm |
| Lock Washer Outside Diameter (Max.) | 4.81 mm |
| Washer Type | Split Lock Washer |
| Drive Size | 1 |
| Penetration Depth (Min.) | 1.15 mm |
| Penetration Depth (Max.) | 1.55 mm |
| Recess Diameter | 2.68 mm |
| Head Radius (Min.) | 4.00 mm |
| Brand | VARIED |
| Length | 6mm |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.00 mm |
| Head Diameter (Min.) | 4.70 mm |
| Head Height (Max.) | 2.10 mm |
| Head Height (Min.) | 1.90 mm |
| Lock Washer Thickness (Min.) | 0.79 mm |
| Lock Washer Inside Diameter (Min.) | 2.22 mm |
| Lock Washer Inside Diameter (Max.) | 2.35 mm |
| Lock Washer Width (Min.) | 1.19 mm |
