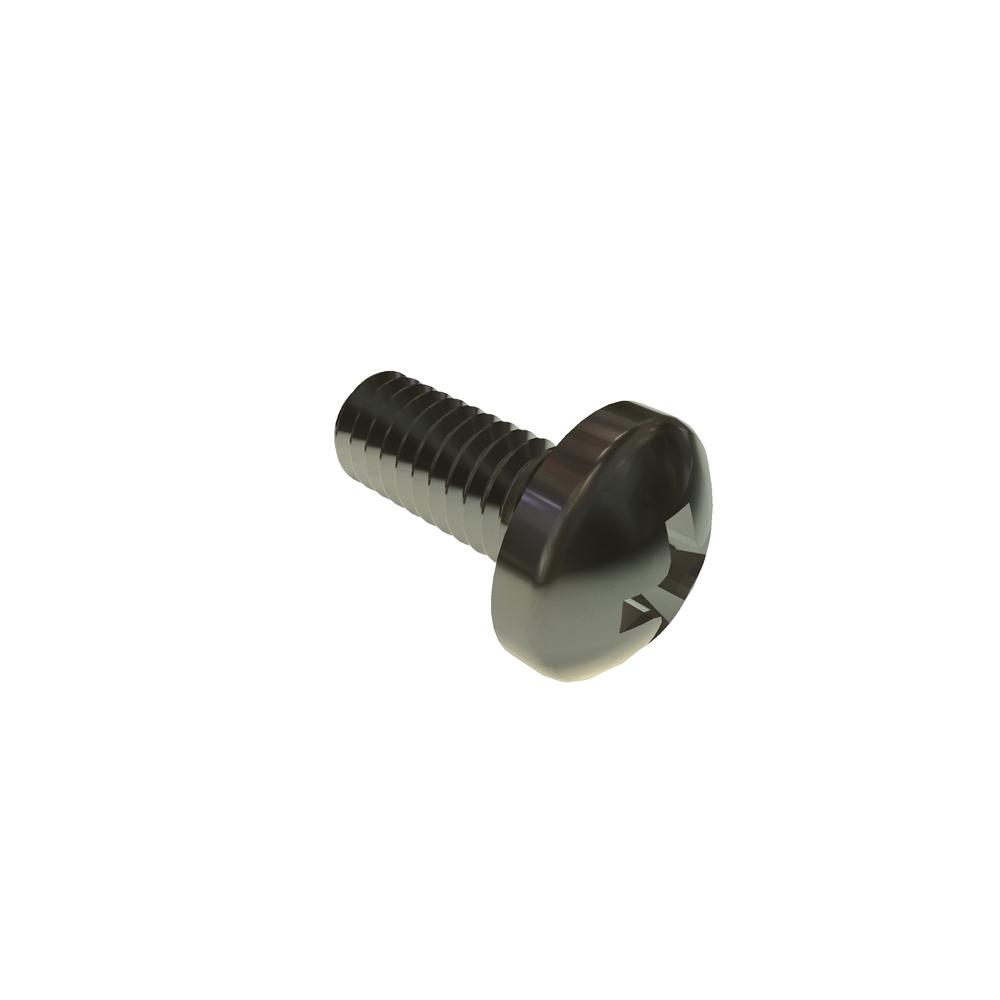

Image for reference purposes only. Actual product may vary.
.25S6PPMSB/P
M2.5-.45 X 6 PH PAN PATCH SST RoHS BLK
Alternate Codes: N/A
M2.5-.45 X 6 Phillips Pan Head Patch Stainless Steel Black Oxide RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M2.5x0.45 |
| Finish | Black Oxide |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 2.68 mm |
| Head Radius (Min.) | 4.00 mm |
| Brand | VARIED |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.00 mm |
| Head Diameter (Min.) | 4.70 mm |
| Head Height (Max.) | 2.10 mm |
| Head Height (Min.) | 1.90 mm |
| Nominal Diameter | 2.50 mm |
| Head Type | Pan |
| Penetration Depth (Min.) | 1.15 mm |
| Penetration Depth (Max.) | 1.55 mm |
