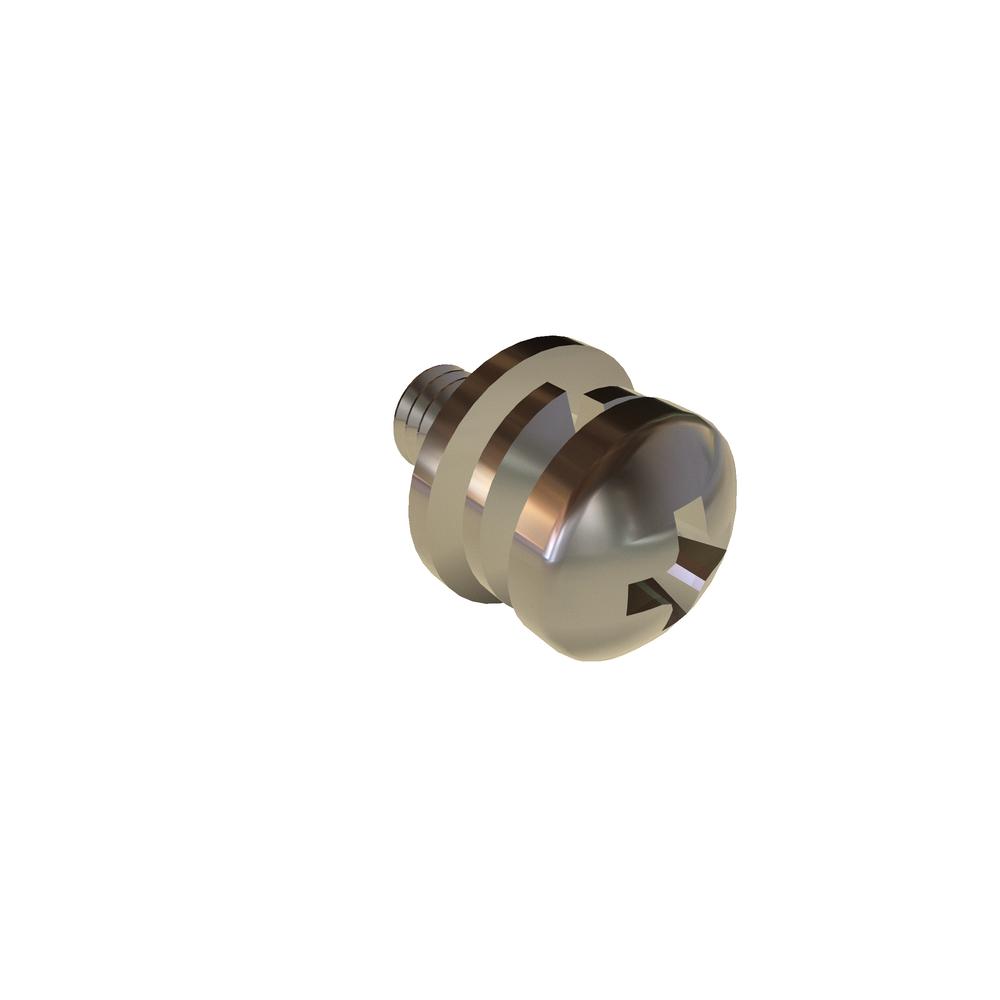

Image for reference purposes only. Actual product may vary.
.25S6PPSS
M2.5-.45 X 6 PH PAN DBL SEM SL/FW SST
Alternate Codes: N/A
M2.5-.45 X 6 Phillips Pan Head Double Sems Split Lockwasher/Flat Washer Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 6mm |
| Thread Size | M2.5x0.45 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 2.68 mm |
| Washer Type | Split Lock Washer and Flat Washer |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.50 mm |
| Head Type | Pan |
| Lock Washer Outside Diameter (Min.) | 4.60 mm |
| Lock Washer Outside Diameter (Max.) | 4.81 mm |
| Drive Size | 1 |
| Penetration Depth (Min.) | 1.15 mm |
| Penetration Depth (Max.) | 1.55 mm |
| Head Radius (Min.) | 4.00 mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.00 mm |
| Head Diameter (Min.) | 4.70 mm |
| Head Height (Max.) | 2.10 mm |
| Head Height (Min.) | 1.90 mm |
| Lock Washer Thickness (Min.) | 0.79 mm |
| Flat Washer Thickness (Min.) | 0.90 mm |
| Flat Washer Thickness (Max.) | 0.60 mm |
| Flat Washer Outside Diameter (Min.) | 8.00 mm |
| Flat Washer Outside Diameter Max | 7.64 mm |
| Lock Washer Inside Diameter (Min.) | 2.22 mm |
| Lock Washer Inside Diameter (Max.) | 2.35 mm |
| Lock Washer Width (Min.) | 1.19 mm |
