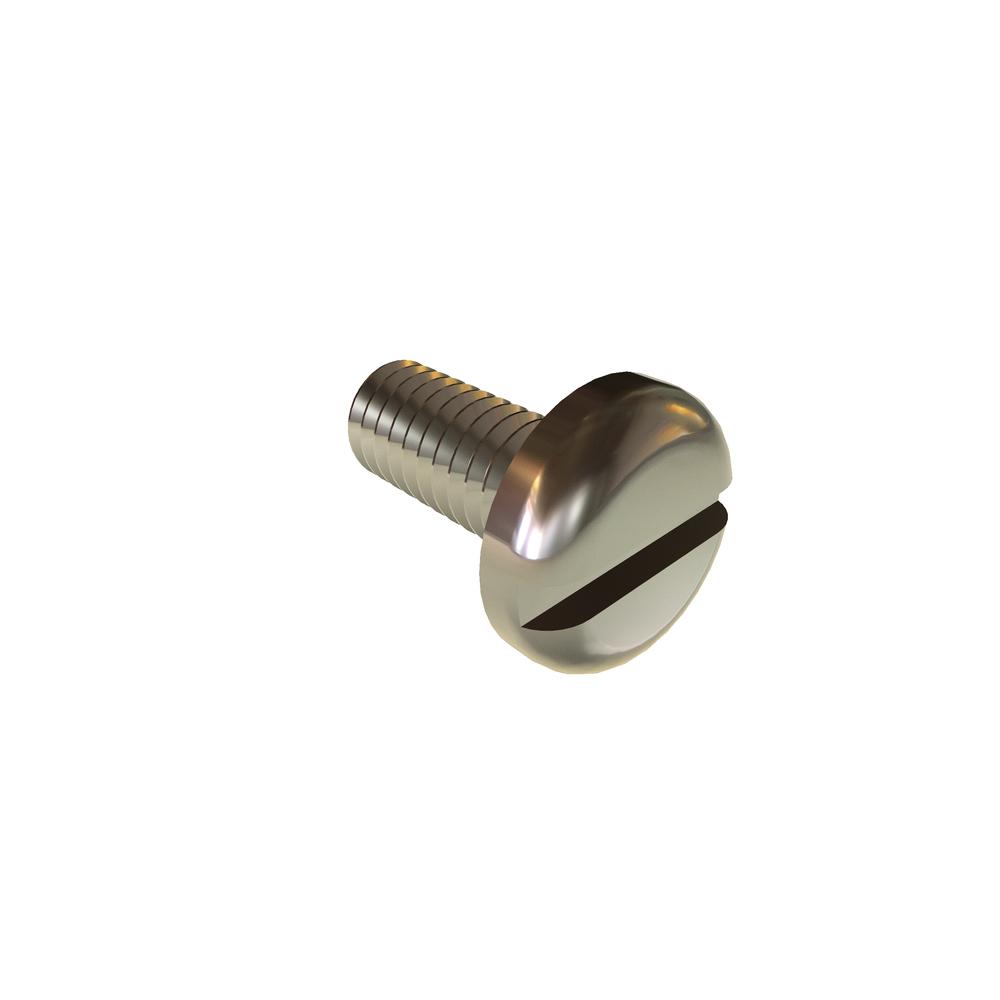

M2.5-.45 X 6 SLOT PAN HD SST RoHS
.25S6SPMS
| Item Id | .25S6SPMS |
| Description | M2.5-.45 X 6 SLOT PAN HD SST RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91200A222 |
| Body Diameter (Max.) | 2.50 mm |
| Body Diameter (Min.) | 2.12 mm |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Plain |
| Head Diameter (Max.) | 5.00 mm |
| Head Diameter (Min.) | 4.70 mm |
| Head Height (Max.) | 1.50 mm |
| Head Height (Min.) | 1.30 mm |
| Head Radius (Min.) | 1.00 mm |
| Head Type | Pan |
| Length | 6mm |
| Material | Stainless Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 2.50 mm |
| RoHS | Compliant |
| Slot Depth (Min.) | 0.60 mm |
| Slot Width (Max.) | 0.80 mm |
| Slot Width (Min.) | 0.60 mm |
| Thread Size | M2.5x0.45 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
