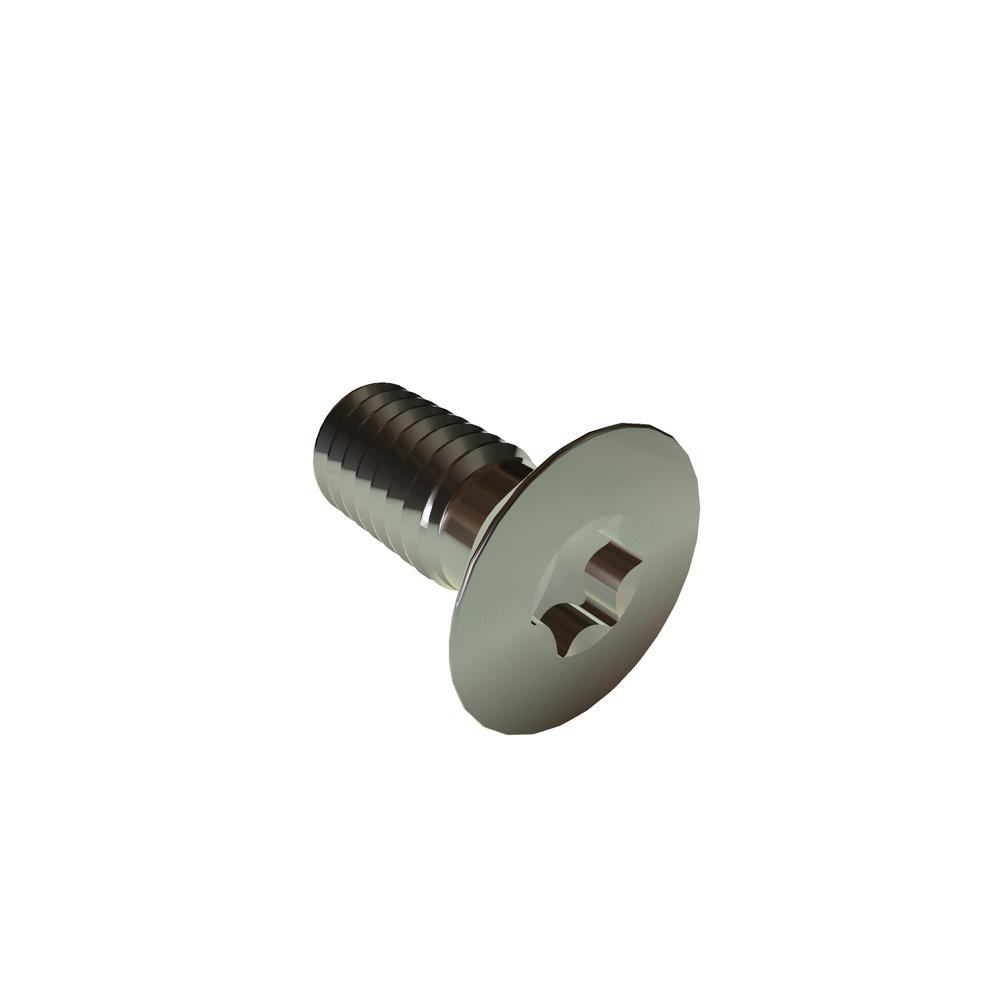

M2.5-.45 X 6 TORX (T-8) FLAT SST
.25S6XFMS
| Item Id | .25S6XFMS |
| Description | M2.5-.45 X 6 TORX (T-8) FLAT SST RoHS |
| Alternate Codes | 92703A158 |
| Extended Description | ISO 14581 |
| Packaging | EA |
| Additional Industry Cross Reference | 92703A158 |
| Brand | VARIED |
| Drive Size | T8 |
| Drive Type | Torx |
| Finish | Plain |
| Head Diameter (Max.) | 4.70 mm |
| Head Diameter (Min.) | 4.40 mm |
| Head Height | 1.50 mm |
| Head Type | Flat |
| Length | 6mm |
| Material | Stainless Steel |
| Meets (Standard) | ISO 14581 |
| Nominal Diameter | 2.50 mm |
| Recess Depth (Max.) | 0.66 mm |
| Recess Depth (Min.) | 0.66 mm |
| Recess Diameter | 2.40 mm |
| Thread Size | M2.5x0.45 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
