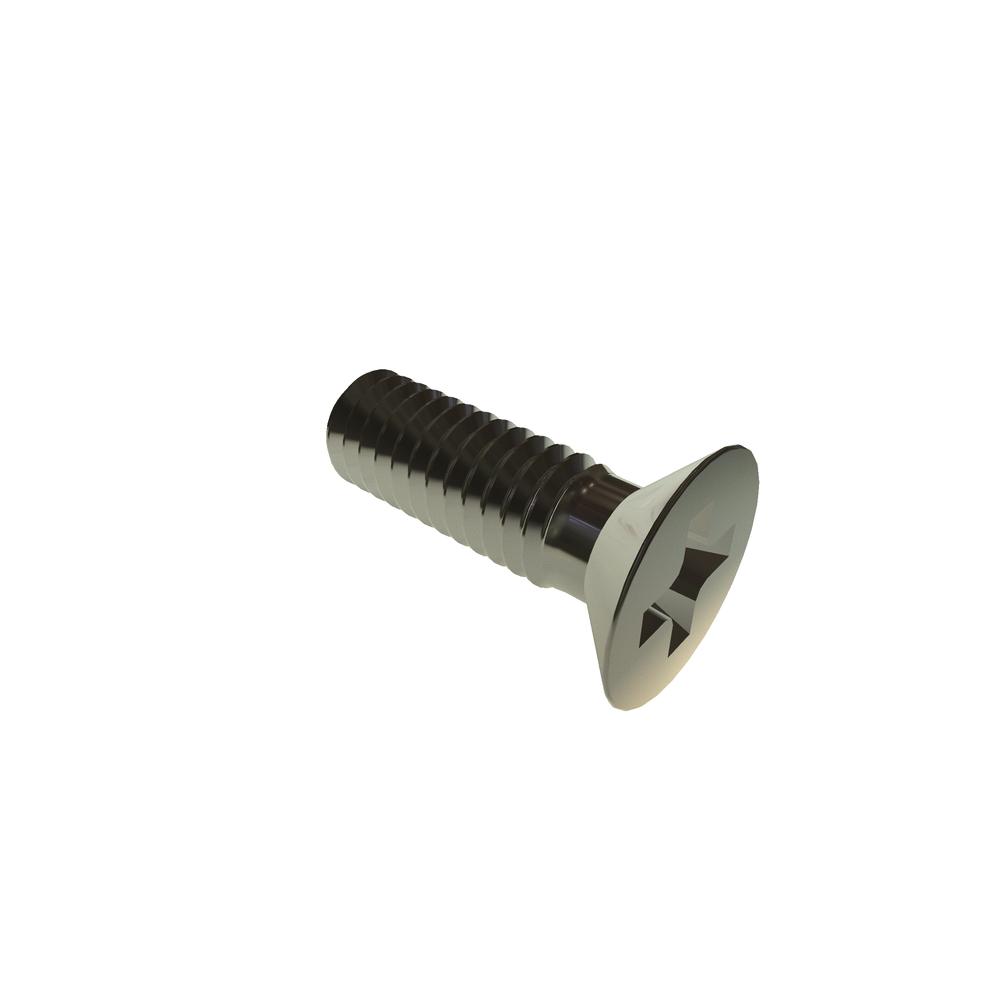

.25S8PFMS/P
M2.5-.45 X 8 PHIL FLAT PATCH SST RoHS
Alternate Codes: N/A
M2.5-.45 X 8 Phillips Flat DIN965 Patchlock Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.526 | $0.289 | $0.241 | $0.206 | $0.170 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M2.5x0.45 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.50 mm |
| Head Type | Flat |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 2.78 mm |
| Head Height | 1.50 mm |
| Recess Depth | 1.78 mm |
| Recess Width | 0.74 mm |
| Brand | VARIED |
| Length | 8mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 4.70 mm |
| Head Diameter (Min.) | 4.40 mm |
