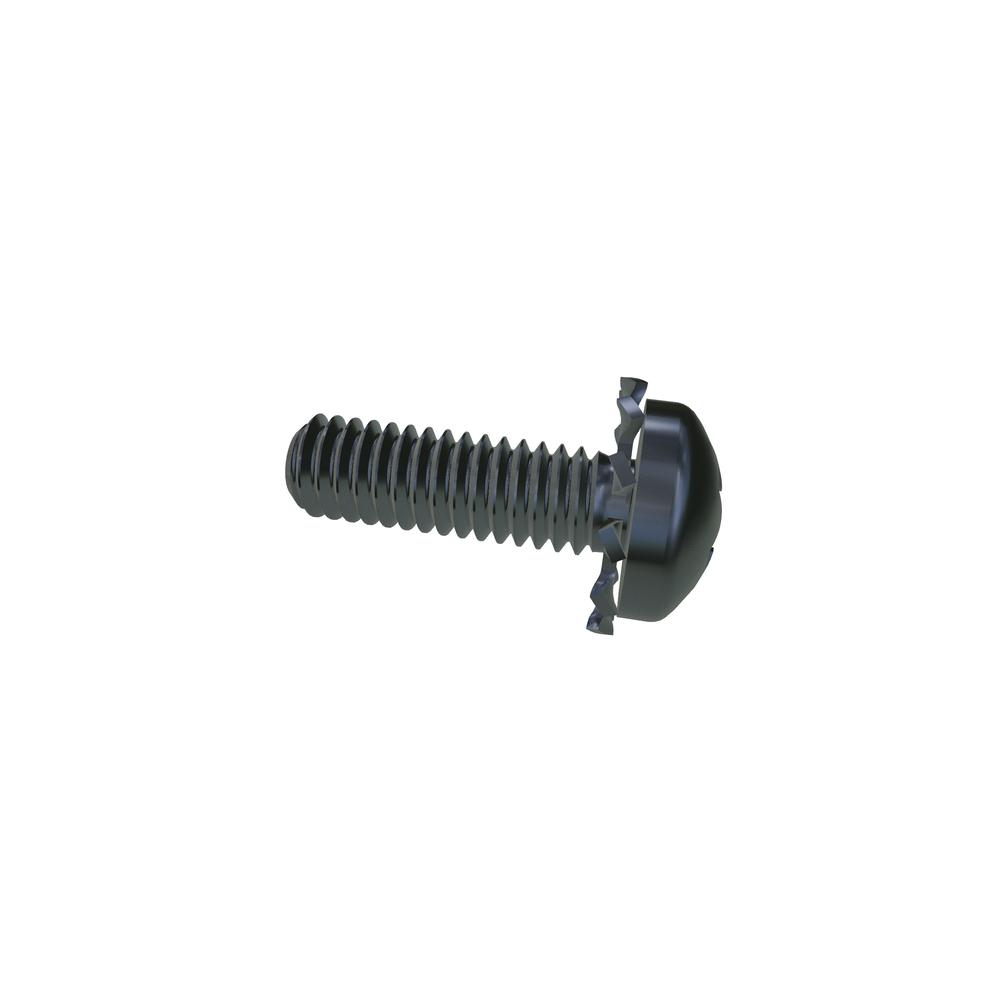

M2.5-.45 X 8 PHIL PAN EXT SEMS STL ZN
.25S8PPEZZ-NONROHS
| Item Id | .25S8PPEZZ-NONROHS |
| Description | M2.5-.45 X 8 PHIL PAN EXT SEMS STL ZN |
| Alternate Codes | .25S8PPEZZ |
| Extended Description | Non-RoHS |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Zinc Clear |
| Head Diameter (Max.) | 5.00 mm |
| Head Diameter (Min.) | 4.70 mm |
| Head Height (Max.) | 2.10 mm |
| Head Height (Min.) | 1.90 mm |
| Head Radius (Min.) | 4.00 mm |
| Head Type | Pan |
| Length | 8mm |
| Lock Washer Outside Diameter (Max.) | 5.84 mm |
| Lock Washer Outside Diameter (Min.) | 5.59 mm |
| Lock Washer Thickness (Max.) | 0.51 mm |
| Lock Washer Thickness (Min.) | 0.36 mm |
| Material | Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 2.50 mm |
| Penetration Depth (Max.) | 1.55 mm |
| Penetration Depth (Min.) | 1.15 mm |
| Recess Diameter | 2.68 mm |
| RoHS | Non Compliant |
| Thread Size | M2.5x0.45 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Washer Type | External Tooth Lock Washer |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
