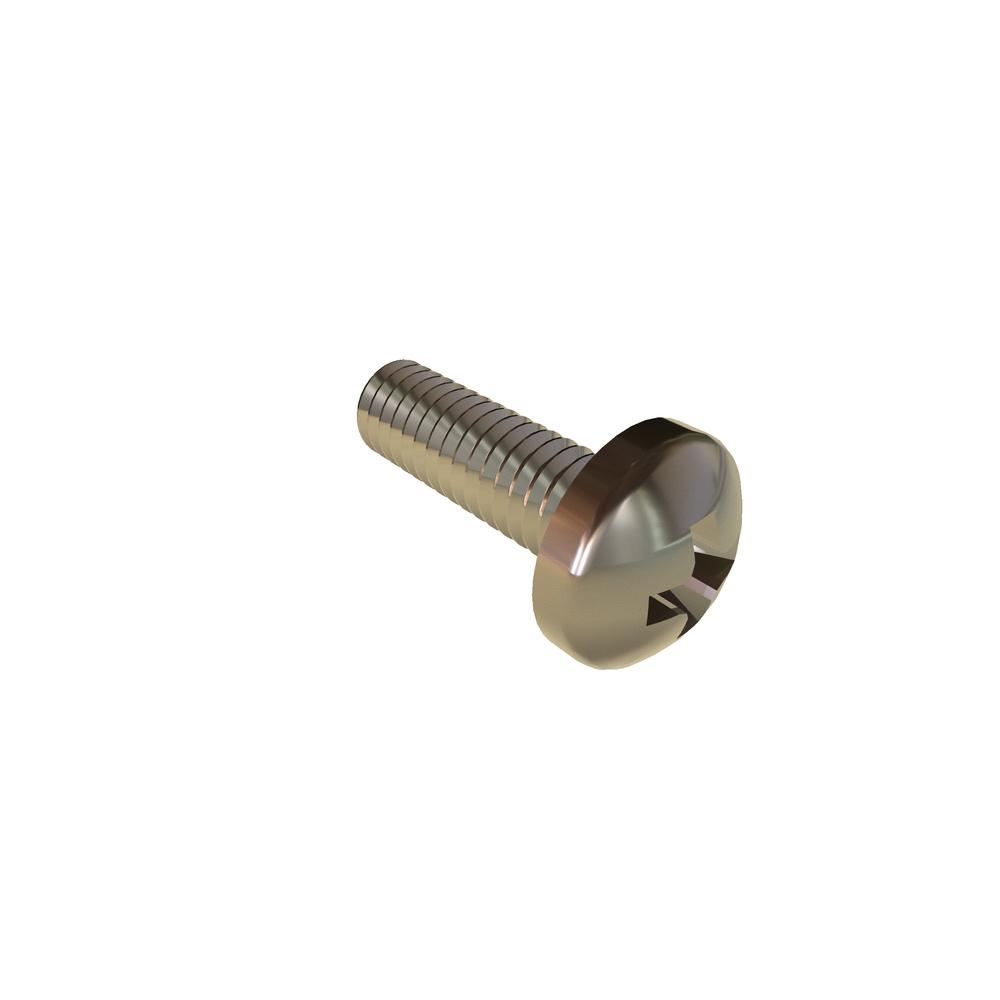

Image for reference purposes only. Actual product may vary.
.25S8PPMS/SEEL
M2.5-.45 X 8 PH PAN SEELSKREW® SST RoHS
Alternate Codes: N/A
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 2.50 mm |
| Thread Size | M2.5x0.45 |
| Finish | Plain |
| Recess Depth (Max.) | 1.55 mm |
| Recess Depth (Min.) | 1.15 mm |
| Recess Diameter | 2.68 mm |
| O-Ring Thickness | 0.71 mm |
| O-Ring Diameter | 3.92 mm |
| Brand | APM HEXSEAL |
| Drive Type | Phillips |
| Head Type | Pan |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Drive Size | 1 |
| Head Radius (Min.) | 4.00 mm |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Head Diameter (Max.) | 5.00 mm |
| Head Diameter (Min.) | 4.70 mm |
| Head Height (Max.) | 2.10 mm |
| Head Height (Min.) | 1.90 mm |
