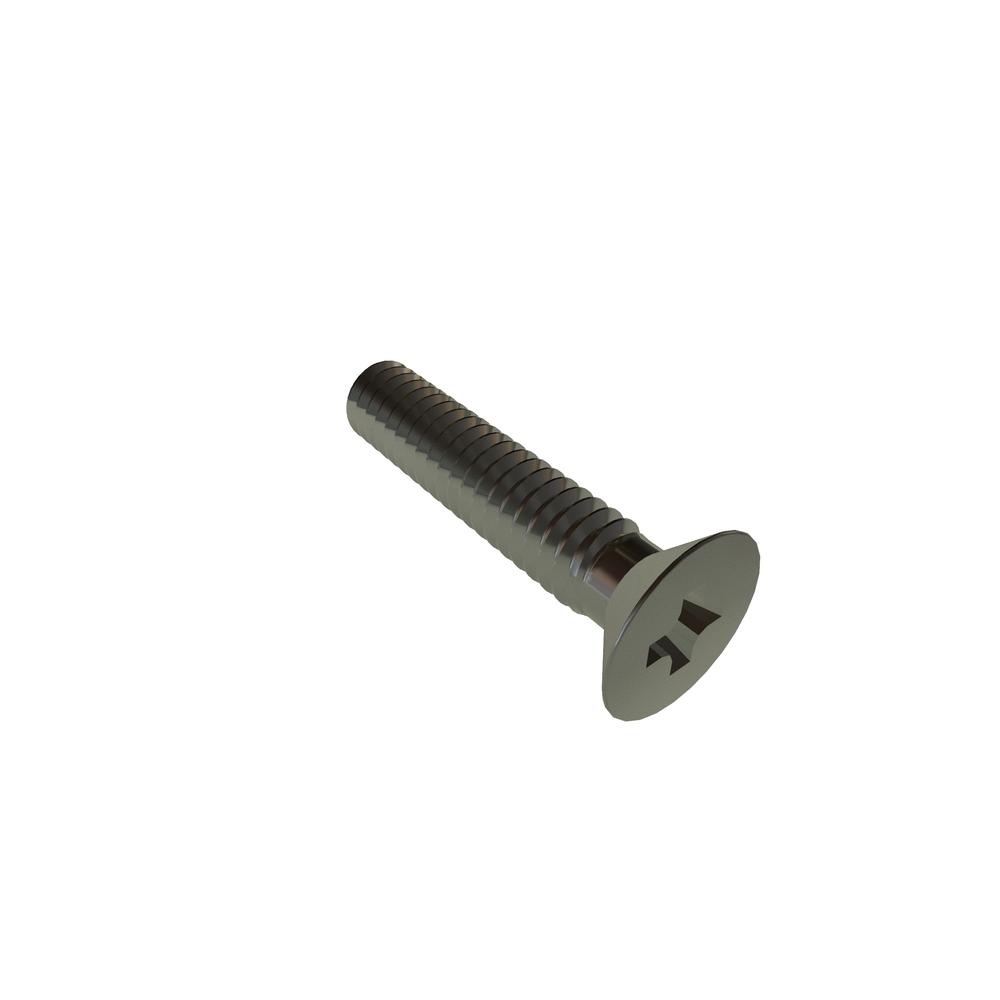

M2-.4 x 10 Phil Flat SST silver
.2C10PFMSS
| Item Id | .2C10PFMSS |
| Description | M2-.4 X 10 PHIL FLAT SST SILVER PLTD |
| Extended Description | DIN965 RoHS |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Phillips |
| Finish | Silver Plated |
| Head Diameter (Max.) | 3.80 mm |
| Head Diameter (Min.) | 3.50 mm |
| Head Height | 1.20 mm |
| Head Type | Flat |
| Length | 10mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 2.00 mm |
| Recess Depth | 1.54 mm |
| Recess Diameter | 1.9 mm |
| Recess Width | 0.53 mm |
| Thread Size | M2x0.4 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
