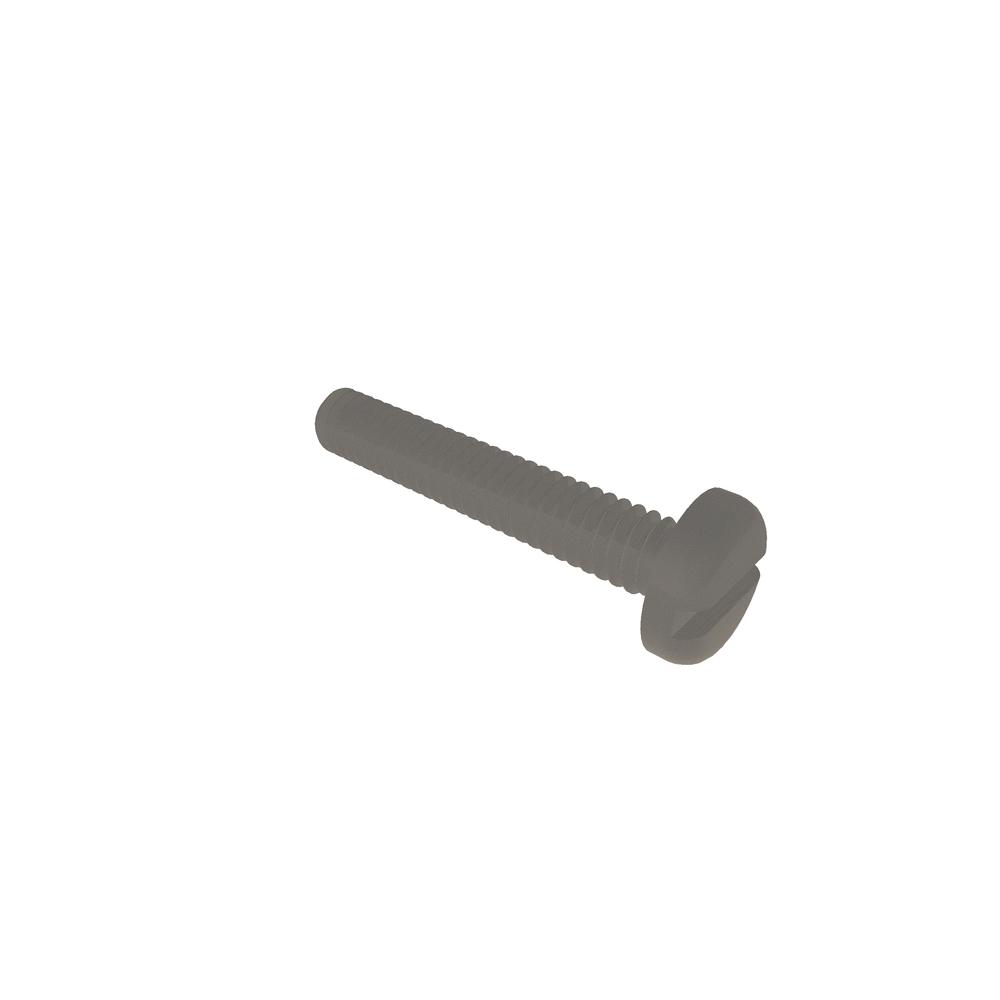

Image for reference purposes only. Actual product may vary.
.2C12SPMN
M2-.4 X 12 SLOT PAN HD NYL RoHS
Alternate Codes: 94270A108
M2-.4 X 12 Slot Pan Nylon RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 12mm |
| Thread Size | M2x0.4 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Slotted |
| Material | Nylon |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.00 mm |
| Head Type | Pan |
| Head Radius (Min.) | 0.80 mm |
| Slot Depth (Min.) | 0.50 mm |
| Slot Width (Min.) | 0.50 mm |
| Slot Width (Max.) | 0.70 mm |
| Body Diameter (Min.) | 1.65 mm |
| Additional Industry Cross Reference | 92942A803 |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 2.00 mm |
| Head Diameter (Max.) | 4.00 mm |
| Head Diameter (Min.) | 3.70 mm |
| Head Height (Max.) | 1.30 mm |
| Head Height (Min.) | 1.10 mm |
