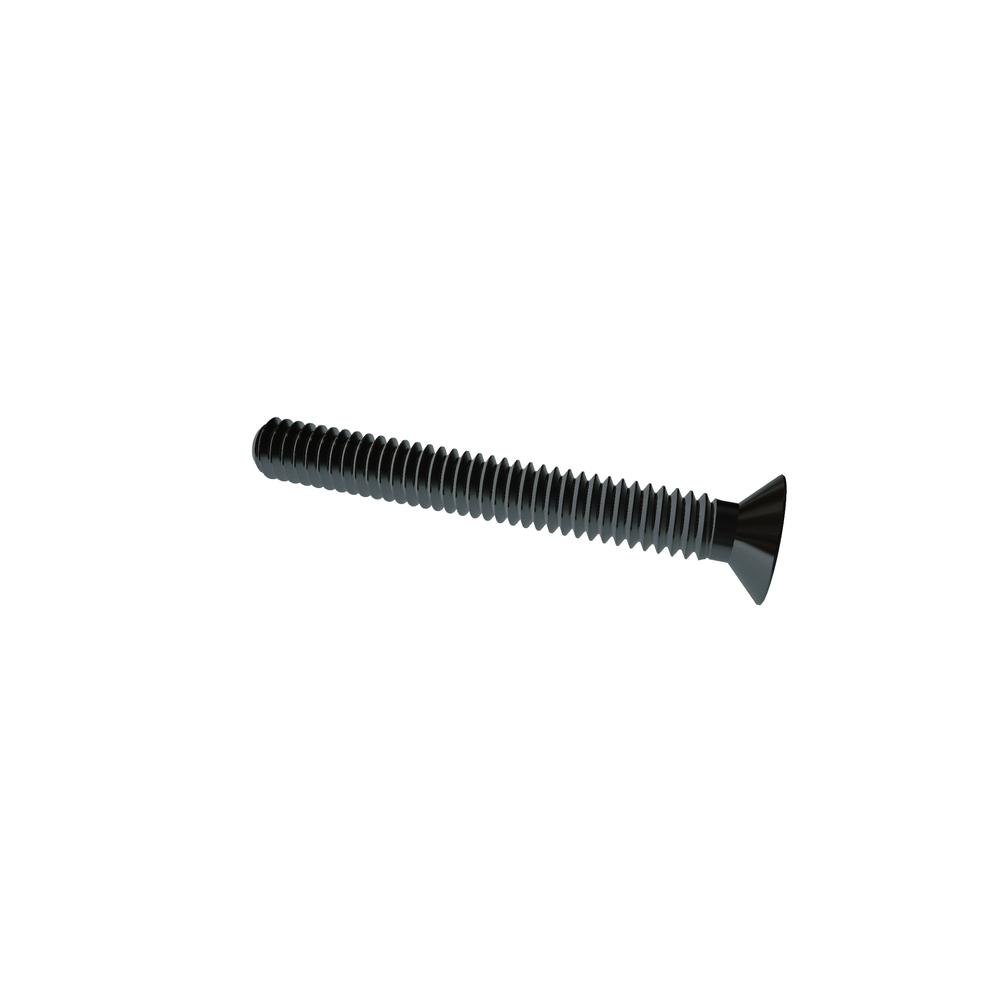

Image for reference purposes only. Actual product may vary.
.2C16PFMZR
M2-.4 X 16 PHIL FLAT STL ZN CR3
Alternate Codes: N/A
M2-.4 X 16 Phillips Flat Steel Zinc Plated RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M2x0.4 |
| Length | 16mm |
| Drive Type | Phillips |
| Material | Steel |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.00 mm |
| Head Type | Flat |
| Recess Diameter | 1.9 mm |
| Head Height | 1.20 mm |
| Recess Depth | 1.54 mm |
| Recess Width | 0.53 mm |
| Additional Industry Cross Reference | 91420A007 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 3.80 mm |
| Head Diameter (Min.) | 3.50 mm |
