  • Item Id: .2C20PFMS

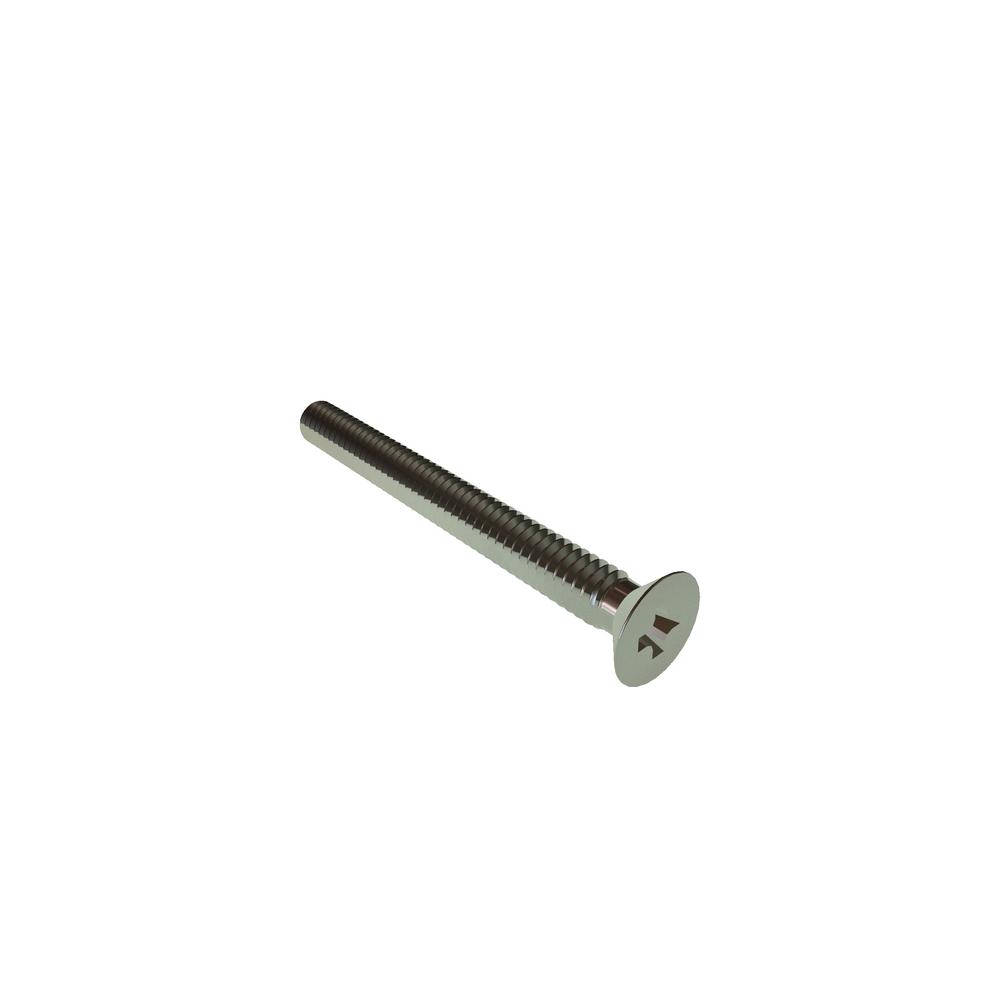

  • Description: M2-.4 X 20 PHIL FLAT SST
  • Alternate Codes: 92010A010
  • Quantity Discounts:
    1 to 249250 to 499500 to 9991000 to 2499Call For
    $0.179$0.107$0.089$0.073Larger Quantities
  • Extended Description: RoHS DIN965
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference92010A010
    BrandVARIED
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)3.80 mm
    Head Diameter (Min.)3.50 mm
    Head Height1.20 mm
    Head TypeFlat
    MaterialStainless Steel
    Meets (Standard)ASME B18.6.7M
    Nominal Diameter2.00 mm
    Recess Depth1.54 mm
    Recess Diameter1.9 mm
    Recess Width0.53 mm
    RoHSCompliant
    Thread SizeM2x0.4
    Thread TypeMetric Coarse
    UnitsMetric
