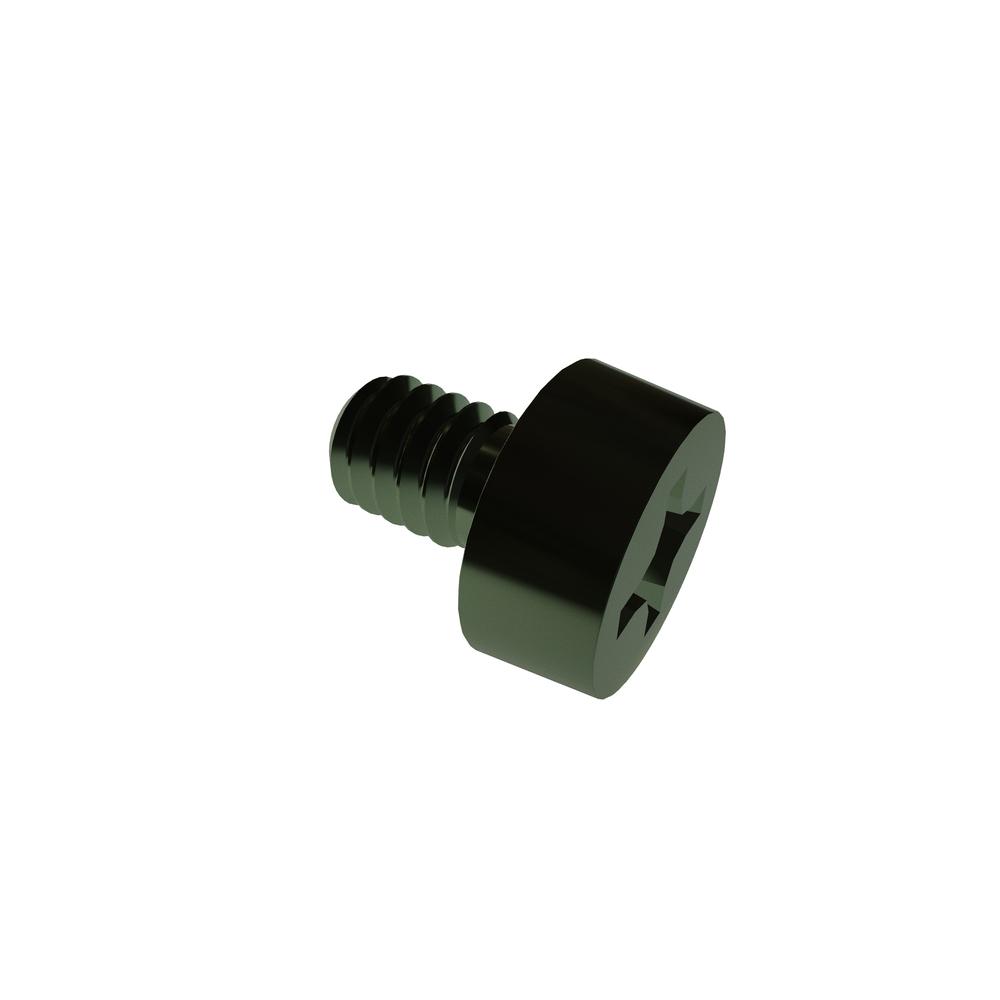

Image for reference purposes only. Actual product may vary.
.2C3PCMZR
M2-.4 X 3 PHIL CHEESE STL ZN CR3
Alternate Codes: N/A
M2-.4 X 3 Phillips Cheese Steel Zinc Plated RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 3mm |
| Thread Size | M2x0.4 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.00 mm |
| Head Type | Cheese |
| Recess Diameter | 2.50 mm |
| Recess Depth (Min.) | 1.10 mm |
| Recess Depth (Max.) | 1.40 mm |
| RoHS | Compliant |
| Head Diameter (Max.) | 4.00 mm |
| Head Diameter (Min.) | 3.70 mm |
| Head Height (Max.) | 1.72 mm |
| Head Height (Min.) | 1.60 mm |
