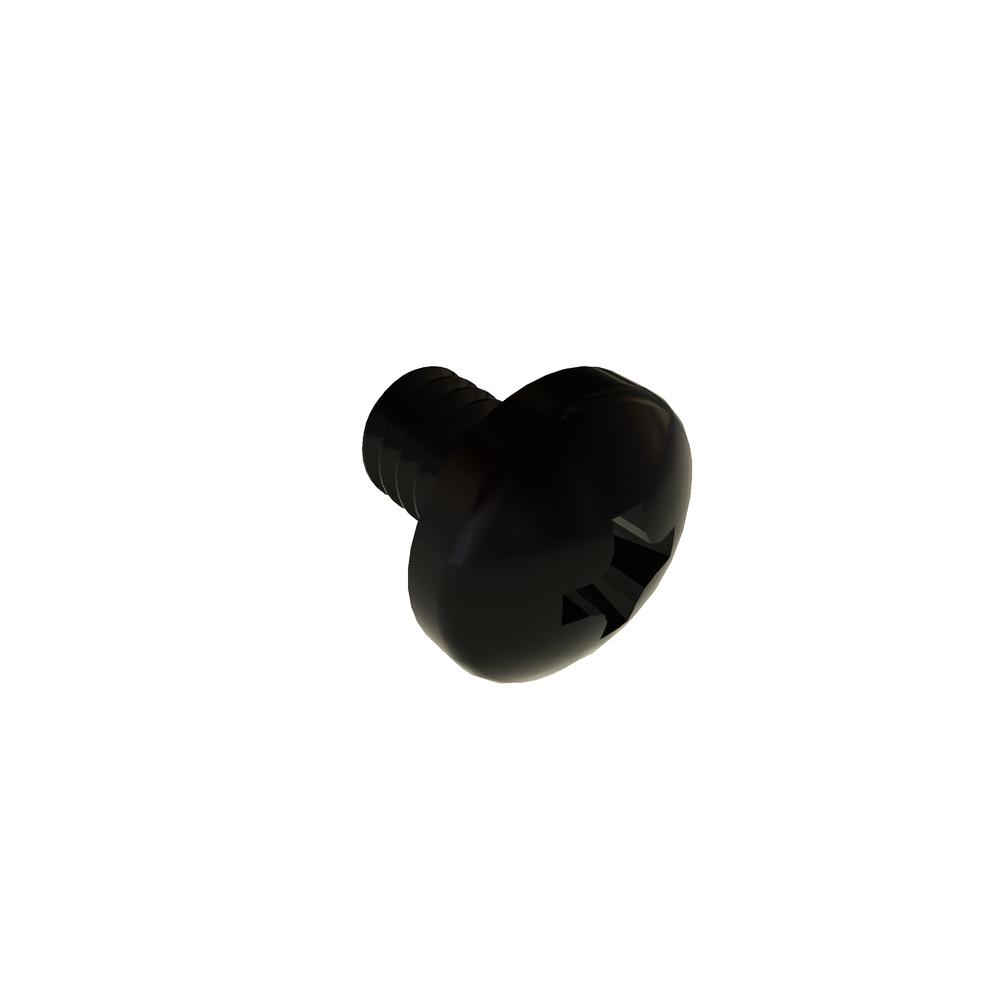

Defaultimage2 .2C3PPMZB M2-.4 X 3 PH PAN STL BLK RoHS



  • Item Id: .2C3PPMZB
  • Description: M2-.4 X 3 PH PAN STL BLK RoHS
  • Extended Description:
  • Quantity on Hand: 0
  • Packaging: EA
  • Please call your Olander Inside Sales Representative at (800) 538-1500 for pricing and availability details on this item. We are happy to assist you!
    Body Diameter (Max.)2.00 mm
    Body Diameter (Min.)1.65 mm
    BrandVARIED
    Drive TypePhillips
    FinishBlack Oxide
    Head Diameter (Max.)4.00 mm
    Head Diameter (Min.)3.70 mm
    Head Height (Max.)1.60 mm
    Head Height (Min.)1.46 mm
    Head Radius (Min.)3.20 mm
    Head TypePan
    MaterialSteel
    Meets (Standard)B18.6.7M
    Nominal Diameter2.00 mm
    Recess Depth (Max.)1.20 mm
    Recess Depth (Min.)0.95 mm
    Recess Diameter1.82 mm
    RoHSCompliant
    Thread SizeM2x0.4
    Thread TypeMetric Coarse
    UnitsMetric
