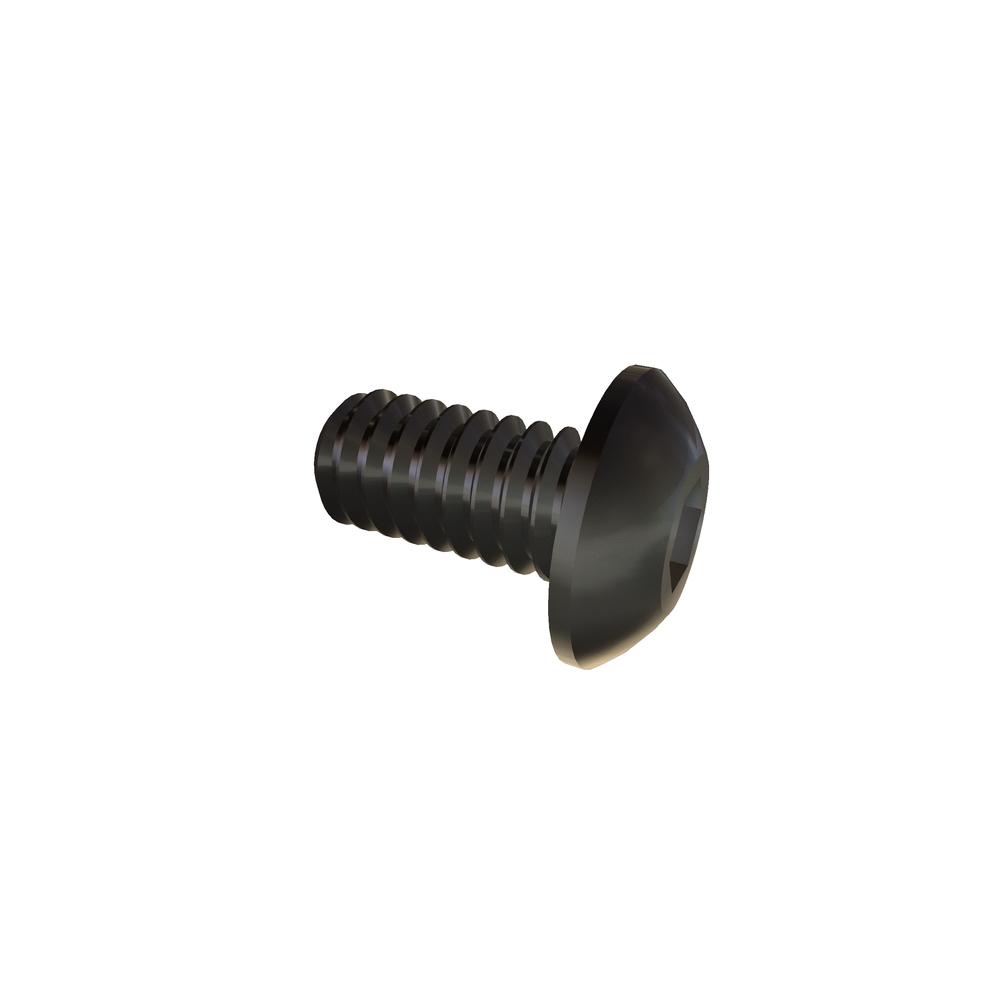

M2-.4 X 4 BUT SOC 316 SST RoHS
.2C4BHC3
| Item Id | .2C4BHC3 |
| Description | M2-.4 X 4 BUT SOC 316SST RoHS |
| Alternate Codes | BN8699 M2X4 |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Max.) | 2.69 mm |
| Fillet Transition Diameter (Min.) | 2.44 mm |
| Finish | Plain |
| Head Diameter (Max.) | 3.80 mm |
| Head Diameter (Min.) | 3.50 mm |
| Head Height (Max.) | 1.10 mm |
| Head Height (Min.) | 0.88 mm |
| Head Side Height (Ref.) | 0.25 mm |
| Head Type | Button |
| Hex Socket Size | 1.28 mm |
| Key Engagement | 0.70 mm |
| Length | 4mm |
| Material | 316 Stainless Steel |
| Meets (Standard) | ASME B18.3.4M |
| Nominal Diameter | 2 mm |
| RoHS | Compliant |
| Thread Size | M2x0.4 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
