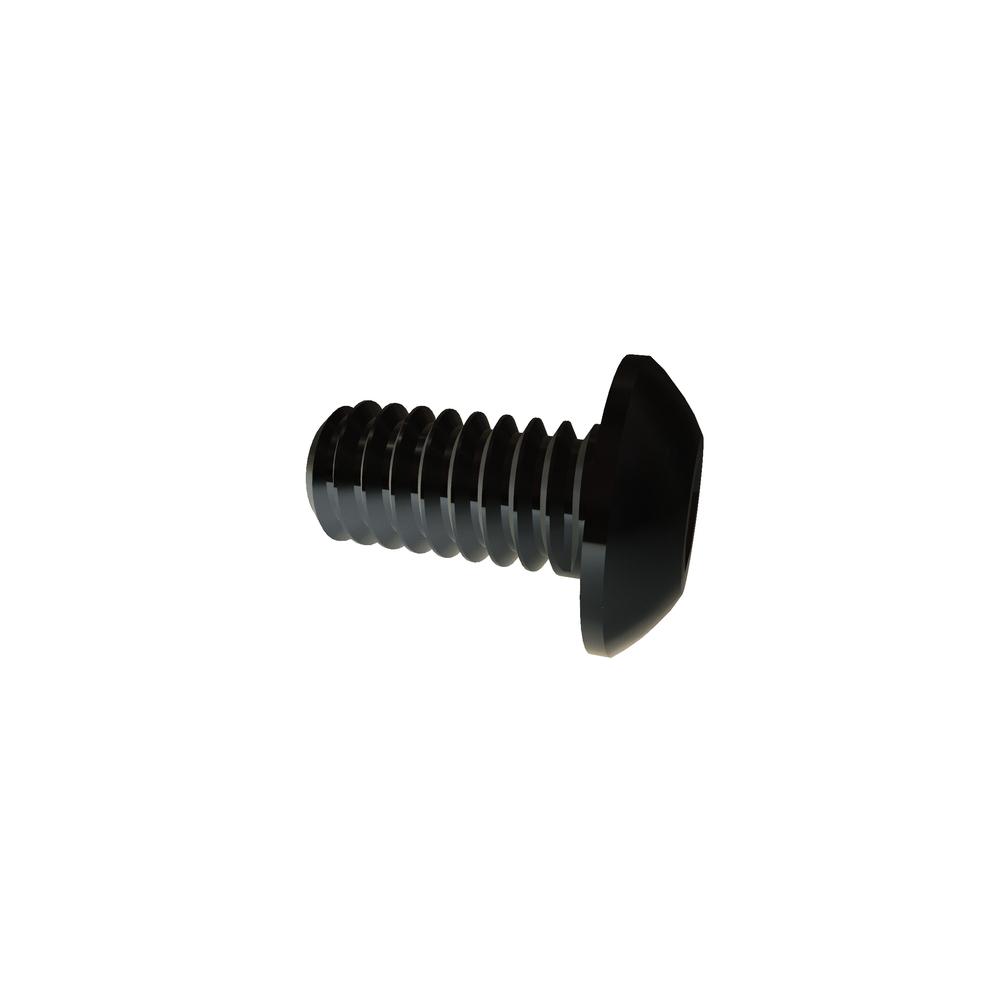

Image for reference purposes only. Actual product may vary.
.2C4BHCA
M2-.4 X 4 BUT SOC ALLOY
Alternate Codes: N/A
M2-.4 X 4 Button Socket ISO 7380-1 10.9 ISO Alloy RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 2 mm |
| Length | 4mm |
| Thread Size | M2x0.4 |
| Finish | Plain |
| Material | Alloy Steel |
| Head Type | Button |
| Drive Type | Hex Socket |
| Head Height (Max.) | 1.10 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Fillet Transition Diameter (Min.) | 2.44 mm |
| Fillet Transition Diameter (Max.) | 2.69 mm |
| Head Side Height (Ref.) | 0.25 mm |
| Key Engagement | 0.70 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 91239A703 |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 3.80 mm |
| Head Diameter (Min.) | 3.50 mm |
| Head Height (Min.) | 0.88 mm |
| Hex Socket Size | 1.28 mm |
