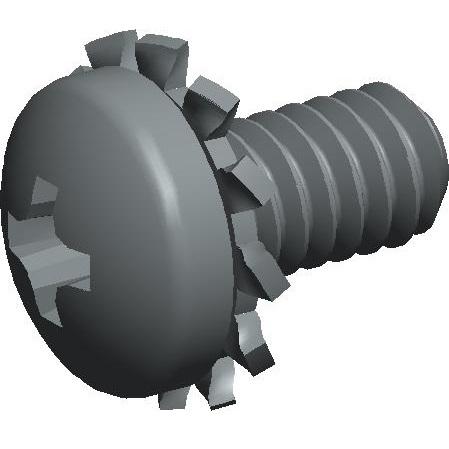

Image for reference purposes only. Actual product may vary.
.2C4PPEZR
M2-.4 X 4 PHIL PAN EXT SEMS STL ZN
Alternate Codes: N/A
M2-.4 X 4 Phillip Pan External Sems B1188C Steel Zinc Plated RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.657 | $0.361 | $0.301 | $0.258 | $0.213 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 4mm |
| Thread Size | M2x0.4 |
| Finish | Zinc Clear |
| Brand | VARIED |
| Recess Diameter | 1.82 mm |
| Washer Type | External Tooth Lock Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.00 mm |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 0.50 mm |
| Lock Washer Outside Diameter (Min.) | 4.20 mm |
| Lock Washer Outside Diameter (Max.) | 4.50 mm |
| Penetration Depth (Min.) | 0.95 mm |
| Penetration Depth (Max.) | 1.20 mm |
| Head Radius (Min.) | 3.20 mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 4.00 mm |
| Head Diameter (Min.) | 3.70 mm |
| Head Height (Max.) | 1.60 mm |
| Head Height (Min.) | 1.40 mm |
| Lock Washer Thickness (Min.) | 0.27 mm |
