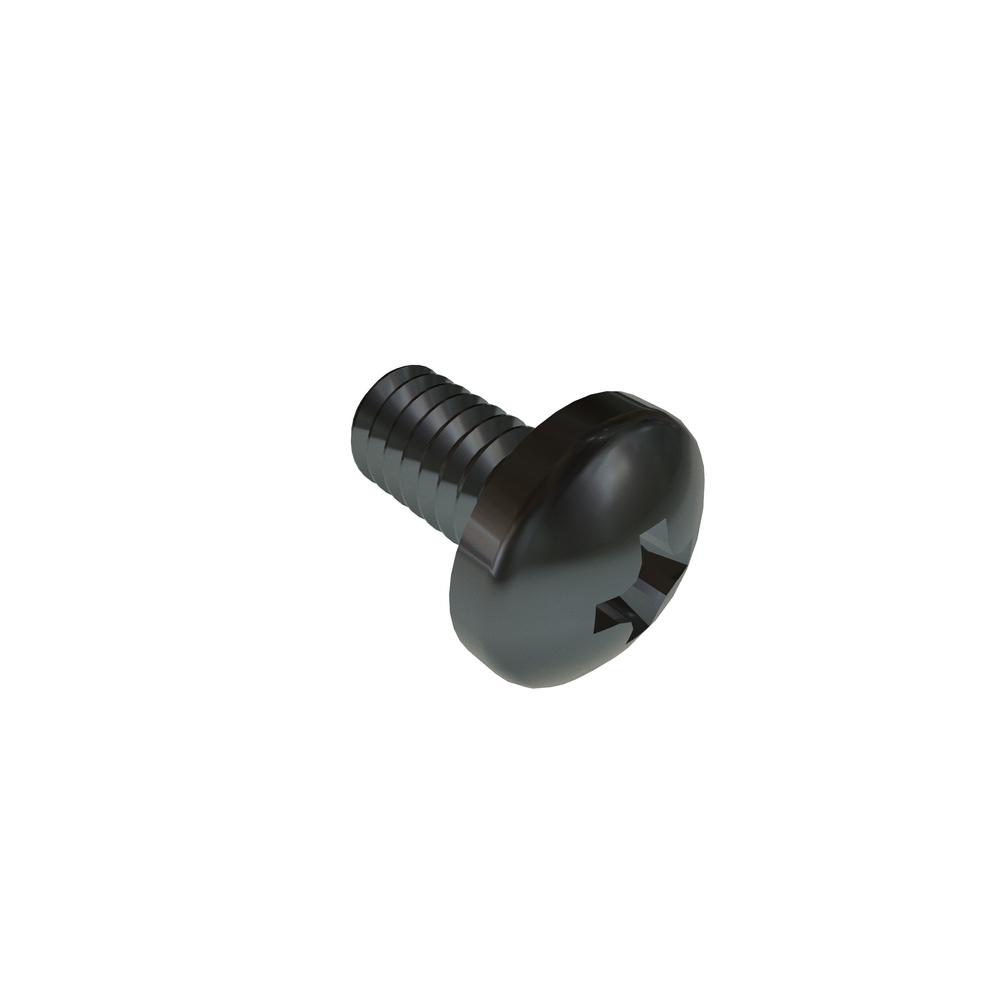

.2C4PPMZR/P
M2-.4 X 4 PH PAN PATCH STL ZN CR3
Alternate Codes: N/A
M2-.4 X 4 Phillips Pan Patchlock Steel Zinc Plated RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.394 | $0.207 | $0.164 | $0.152 | $0.127 | Larger Quantities |
In Stock
| Thread Size | M2x0.4 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.00 mm |
| Head Type | Pan |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Penetration Depth (Min.) | 0.95 mm |
| Penetration Depth (Max.) | 1.20 mm |
| Recess Diameter | 1.82 mm |
| Head Radius (Min.) | 3.20 mm |
| Brand | VARIED |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 4.00 mm |
| Head Diameter (Min.) | 3.70 mm |
| Head Height (Max.) | 1.60 mm |
| Head Height (Min.) | 1.40 mm |
