.2C4SHCS
M2-.4 X 4 SOC CAP SST RoHS
Alternate Codes: 062180-001, 2841-0006-01, 91292A004, BN610 M2X4

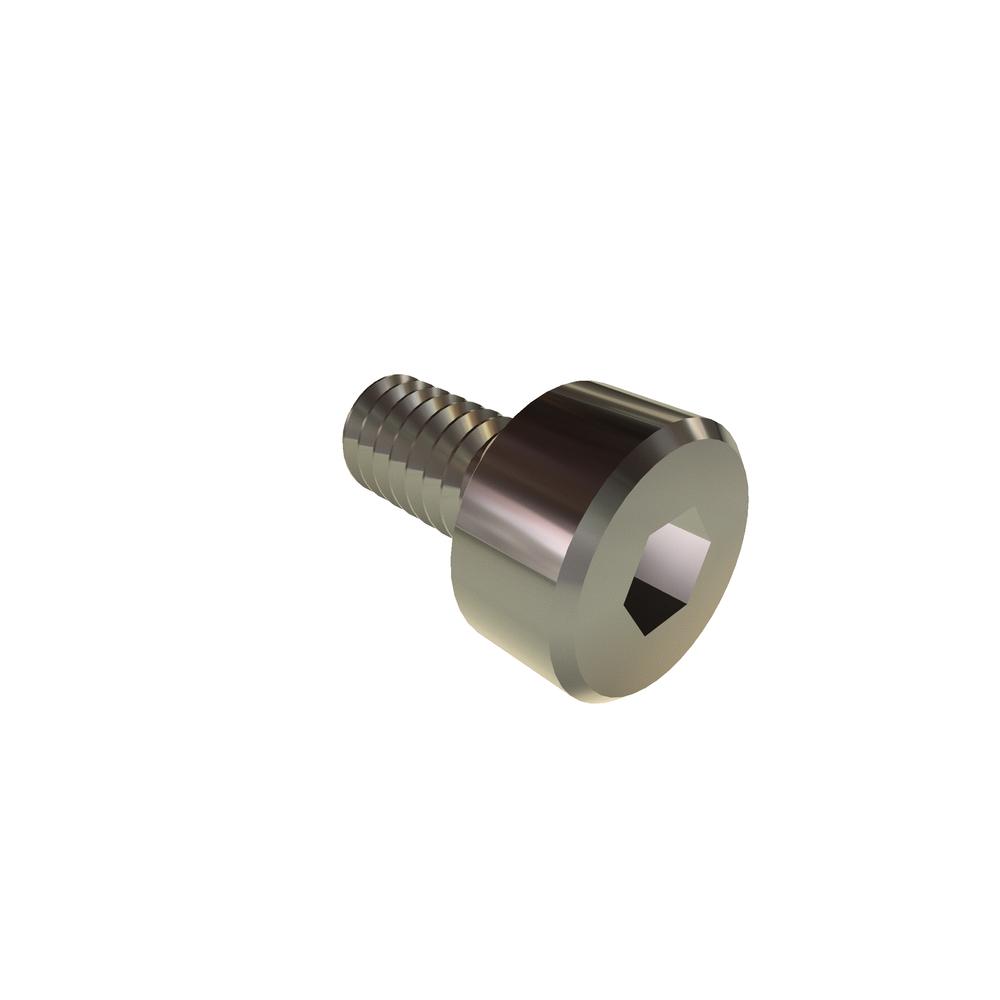

M2-.4 X 4 Socket Cap Full Thread DIN912 Stainless Steel RoHS
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.144 | $0.086 | $0.072 | $0.059 | $0.052 | Larger Quantities |
In Stock
| Thread Size | M2x0.4 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Head Type | Socket |
| Drive Type | Hex Socket |
| Brand | VARIED |
| Additional Industry Cross Reference | 91292A004 |
| Key Engagement (Min.) | 1.00 mm |
| Length | 4mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.1M |
| Body Diameter (Max.) | 2.00 mm |
| Head Diameter (Max.) | 3.80 mm |
| Head Diameter (Min.) | 3.65 mm |
| Head Height (Max.) | 2.00 mm |
| Head Height (Min.) | 1.91 mm |
| Hex Socket Size | 1.50 mm |
