.2C4XPCS
M2-.4 X 4 TORX PAN CREST CUP SEMS SST
Alternate Codes: N/A

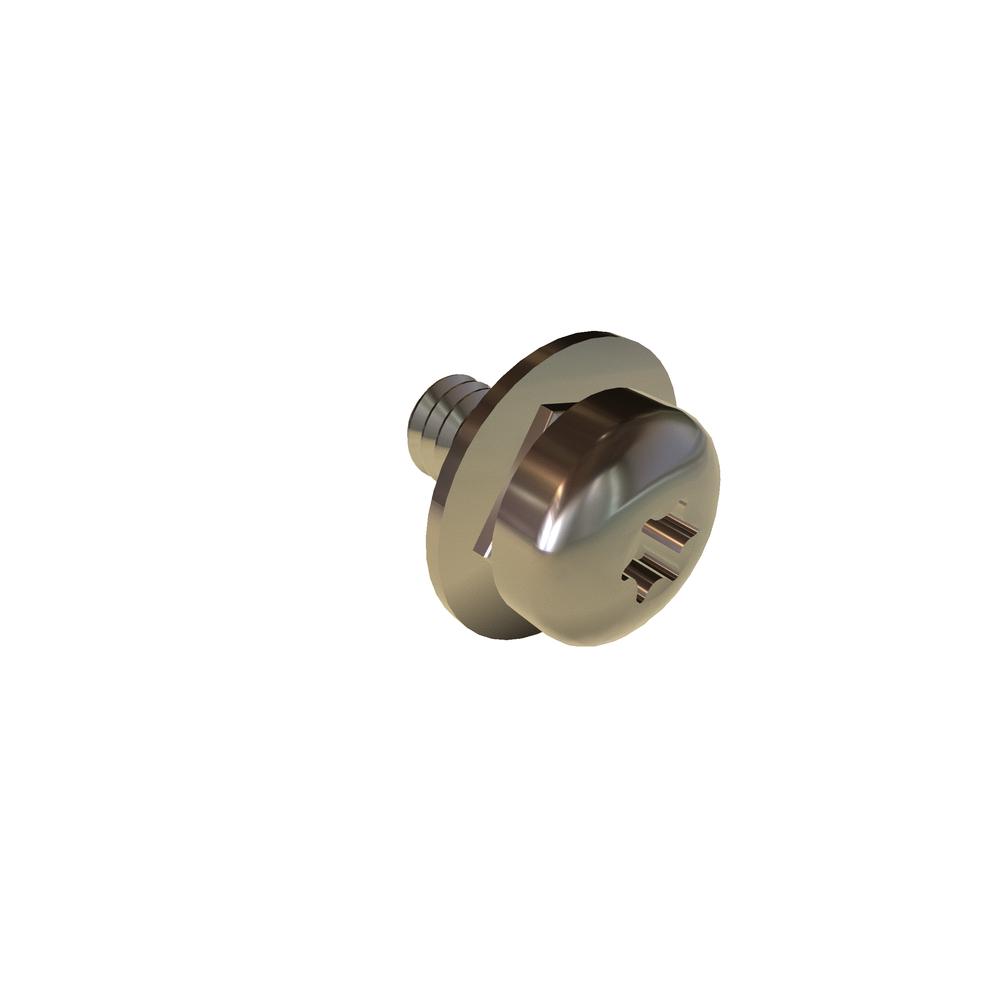

M2-.4 X 4 Torx Pan Crest Cup Sems Stainless Steel RoHS
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|---|
| $1.716 | $1.320 | $1.073 | $0.954 | $0.858 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M2x0.4 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.00 mm |
| Head Type | Pan |
| Drive Type | Torx |
| Lock Washer Thickness (Max.) | 0.50 mm |
| Lock Washer Height (Min.) | 0.50 mm |
| Lock Washer Height (Max.) | 1.00 mm |
| Lock Washer Outside Diameter (Min.) | 5.08 mm |
| Lock Washer Outside Diameter (Max.) | 5.33 mm |
| Washer Type | Crest Cup Washer |
| Drive Size | T6 |
| Penetration Depth (Min.) | 0.63 mm |
| Penetration Depth (Max.) | 0.77 mm |
| Recess Diameter | 1.70 mm |
| Head Radius (Min.) | 3.20 mm |
| Brand | VARIED |
| Length | 4mm |
| RoHS | Compliant |
| Meets (Standard) | ISO 14583 |
| Head Diameter (Max.) | 4.00 mm |
| Head Diameter (Min.) | 3.70 mm |
| Head Height (Max.) | 1.60 mm |
| Head Height (Min.) | 1.46 mm |
| Lock Washer Thickness (Min.) | 0.25 mm |
