.2C5PPMS/P
M2-.4 X 5 PH PAN PATCH SST RoHS
Alternate Codes: 95911A111

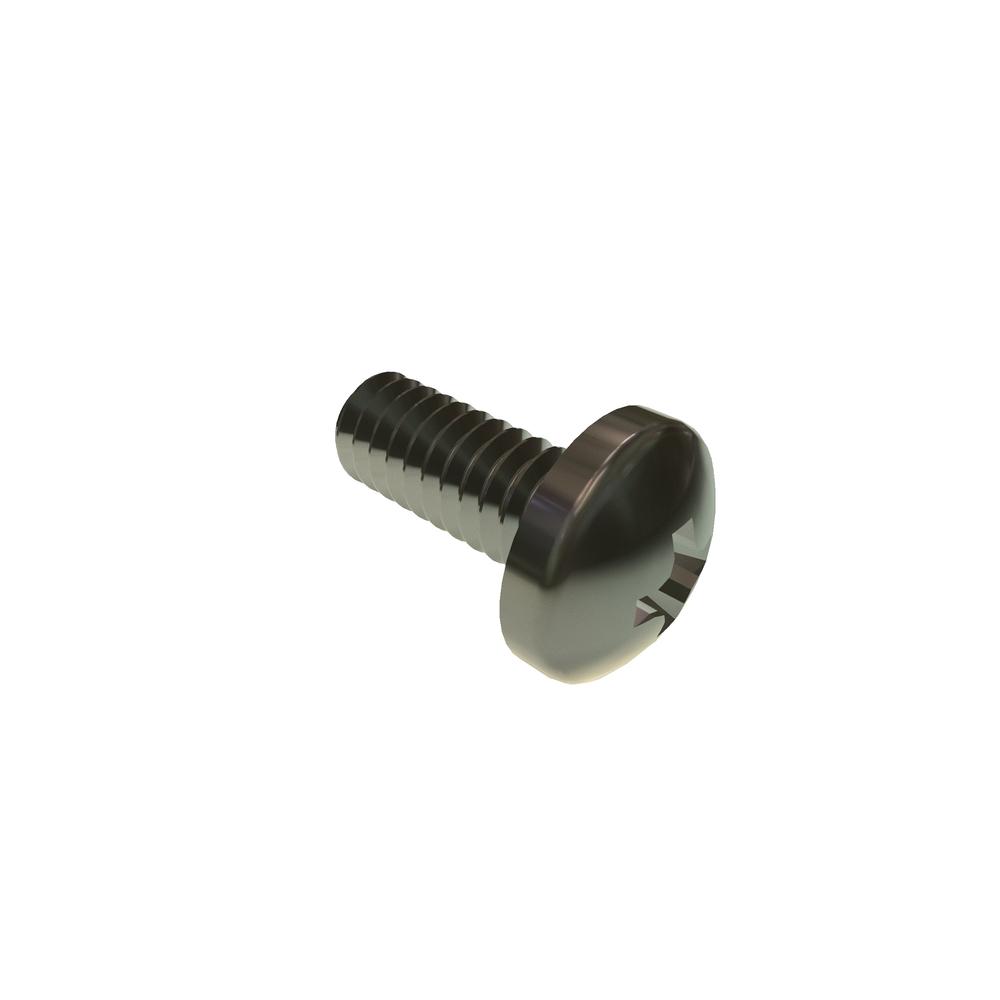

M2-.4 X 5 Phillips Pan DIN7985 Patchlock Stainless Steel RoHS
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs |
|---|---|---|---|---|
| $0.222 | $0.133 | $0.111 | $0.091 | $0.080 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M2x0.4 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.00 mm |
| Head Type | Pan |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Penetration Depth (Min.) | 0.95 mm |
| Penetration Depth (Max.) | 1.20 mm |
| Recess Diameter | 1.82 mm |
| Head Radius (Min.) | 3.20 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 95911A111 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 4.00 mm |
| Head Diameter (Min.) | 3.70 mm |
| Head Height (Max.) | 1.60 mm |
| Head Height (Min.) | 1.40 mm |
