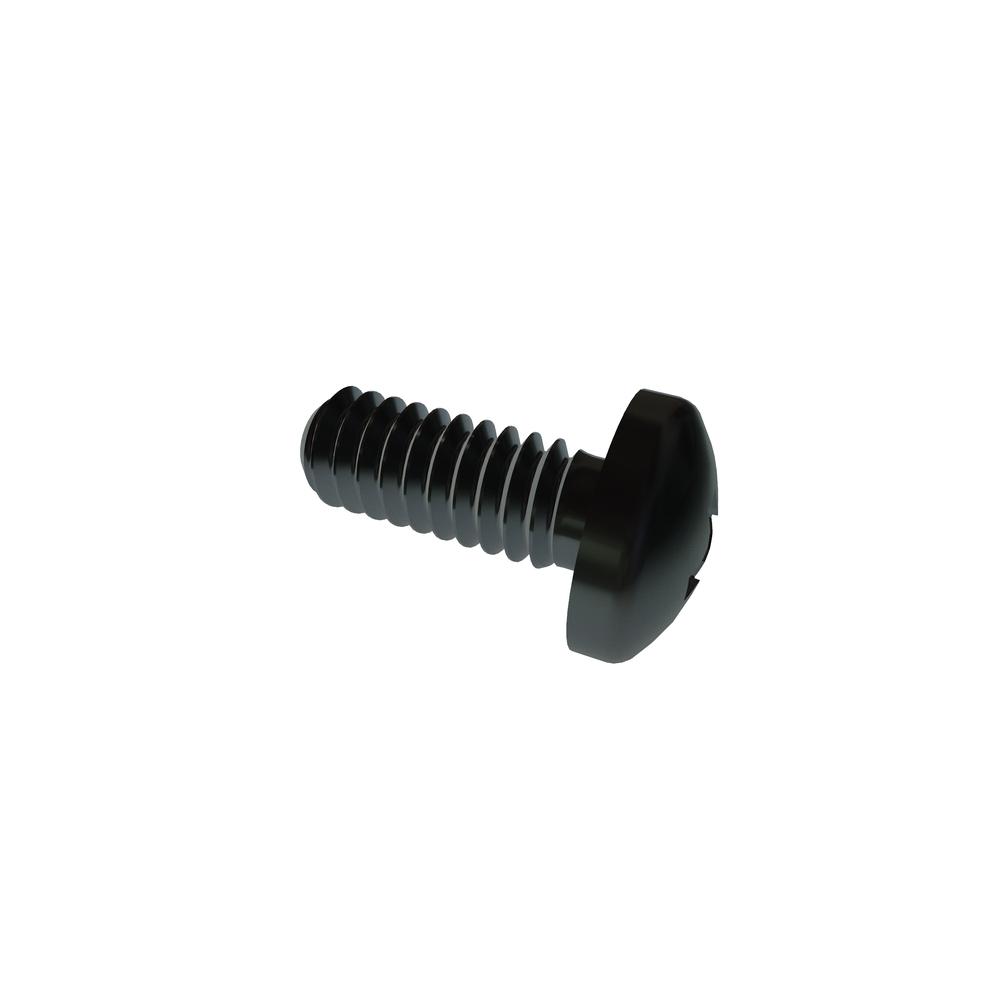

M2-.4 X 5 PH PAN STL ZN CR3
.2C5PPMZR
| Item Id | .2C5PPMZR |
| Description | M2-.4 X 5 PHIL PAN STL ZN RoHS |
| Alternate Codes | .2C5PPMZZ/R, 0301-0011, 92005A019, BN384 M2X5 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92005A019 92005A019 |
| Body Diameter (Max.) | 2.00 mm |
| Body Diameter (Min.) | 1.65 mm |
| Brand | VARIED |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 4.00 mm |
| Head Diameter (Min.) | 3.70 mm |
| Head Height (Max.) | 1.60 mm |
| Head Height (Min.) | 1.46 mm |
| Head Radius (Min.) | 3.20 mm |
| Head Type | Pan |
| Length | 5mm |
| Material | Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 2.00 mm |
| Recess Depth (Max.) | 1.20 mm |
| Recess Depth (Min.) | 0.95 mm |
| Recess Diameter | 1.82 mm |
| RoHS | Compliant |
| Thread Size | M2x0.4 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
