.2C5XPMS
M2-.4 X 5 TORX PAN SST
Alternate Codes: N/A

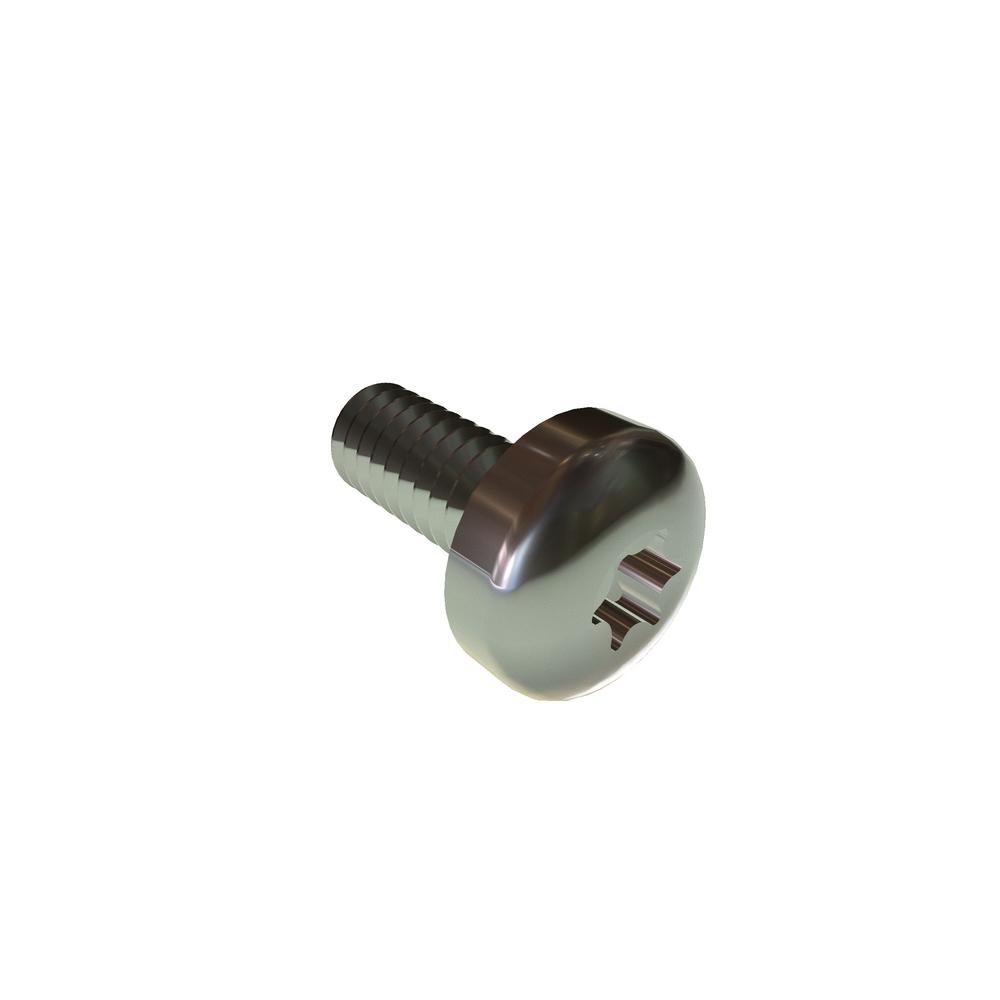

M2-.4 X 5 Pan Head 6-Lobe ISO 14583 Stainless Steel RoHS
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M2x0.4 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.00 mm |
| Head Type | Pan |
| Drive Type | Torx |
| Drive Size | T6 |
| Recess Diameter | 1.7 mm |
| Head Radius (Min.) | 3.20 mm |
| Recess Depth (Max.) | 0.77 mm |
| Brand | VARIED |
| Length | 5mm |
| Meets (Standard) | ISO 14583 |
| Head Diameter (Max.) | 4.00 mm |
| Head Diameter (Min.) | 3.70 mm |
| Head Height (Max.) | 1.60 mm |
| Head Height (Min.) | 1.46 mm |
