.2C6BHCA
M2-.4 X 6 BUT SOC ALLOY
Alternate Codes: N/A

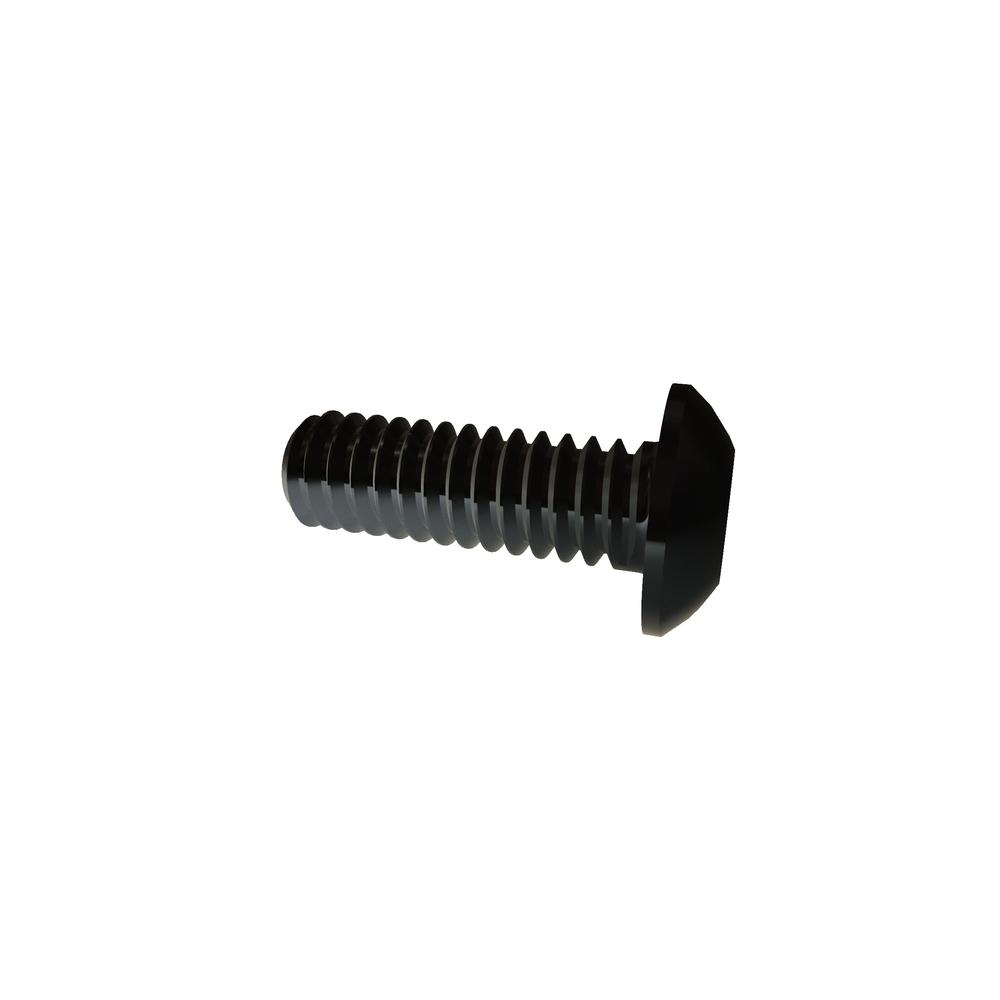

M2-.4 X 6 Button Socket ISO 7380 10.9 Alloy RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.322 | $0.170 | $0.134 | $0.124 | $0.104 | Larger Quantities |
In Stock
| Thread Size | M2x0.4 |
| Material | Alloy Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2 mm |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 2.44 mm |
| Fillet Transition Diameter (Max.) | 2.69 mm |
| Head Side Height (Ref.) | 0.25 mm |
| Key Engagement | 0.70 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 91239A704 |
| Length | 6mm |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 3.80 mm |
| Head Diameter (Min.) | 3.50 mm |
| Head Height (Max.) | 1.10 mm |
| Head Height (Min.) | 0.88 mm |
| Hex Socket Size | 1.28 mm |
