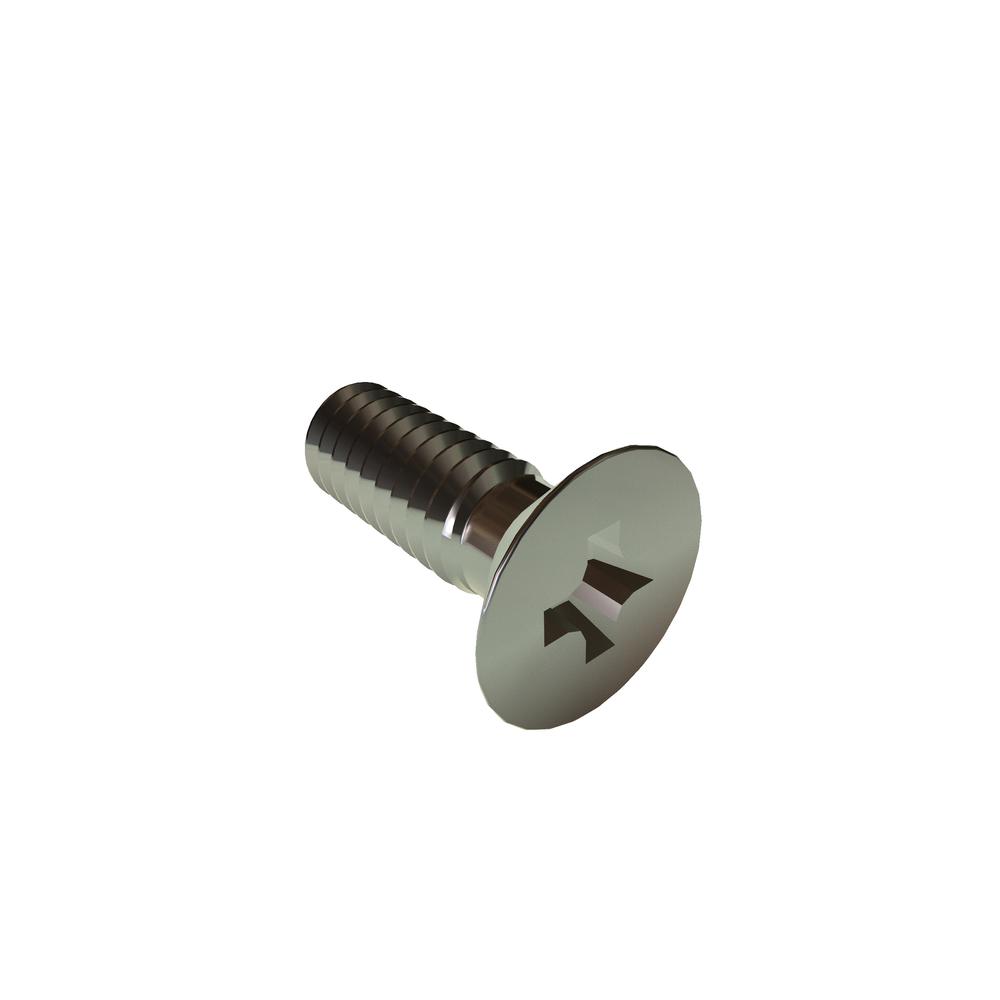

M2-.4 X 6 PHIL FLAT SST RoHS
.2C6PFMS
| Item Id | .2C6PFMS |
| Description | M2-.4 X 6 PHIL FLAT DIN965 SST RoHS |
| Alternate Codes | 92010A003, BN661 M2 X 6, BN661 M2X6 |
| Extended Description | RoHS |
| Packaging | EA |
| Additional Industry Cross Reference | 92010A003 |
| Brand | VARIED |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 3.80 mm |
| Head Diameter (Min.) | 3.50 mm |
| Head Height | 1.20 mm |
| Head Type | Flat |
| Length | 6mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 2.00 mm |
| Recess Depth | 0.95 mm to 1.25 mm |
| Recess Diameter | 2.35 mm |
| Recess Width | 0.53 mm |
| RoHS | Compliant |
| Thread Size | M2x0.4 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
