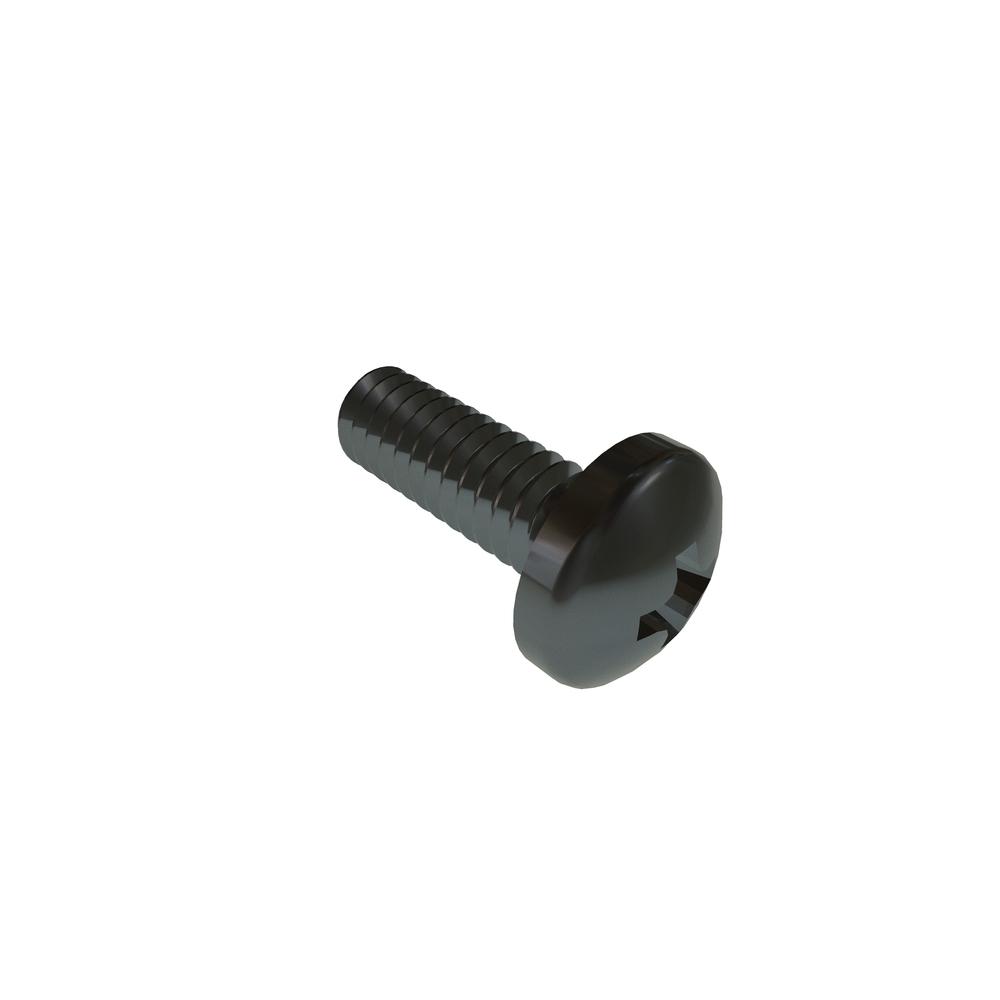

M2-.4 X 6 PH PAN PATCH STL ZN CR3
.2C6PPMZR/P
| Item Id | .2C6PPMZR/P |
| Description | M2-.4 X 6 PH PAN PATCH STL ZN CR3 |
| Extended Description | M2-.4 X 6 Phillips Pan Head PATCH Steel Zinc plate RoHS3 |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 4.00 mm |
| Head Diameter (Min.) | 3.70 mm |
| Head Height (Max.) | 1.60 mm |
| Head Height (Min.) | 1.40 mm |
| Head Radius (Min.) | 3.20 mm |
| Head Type | Pan |
| Locking Element | Patchlock |
| Material | Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 2.00 mm |
| Penetration Depth (Max.) | 1.20 mm |
| Penetration Depth (Min.) | 0.95 mm |
| Recess Diameter | 1.82 mm |
| Thread Size | M2x0.4 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
