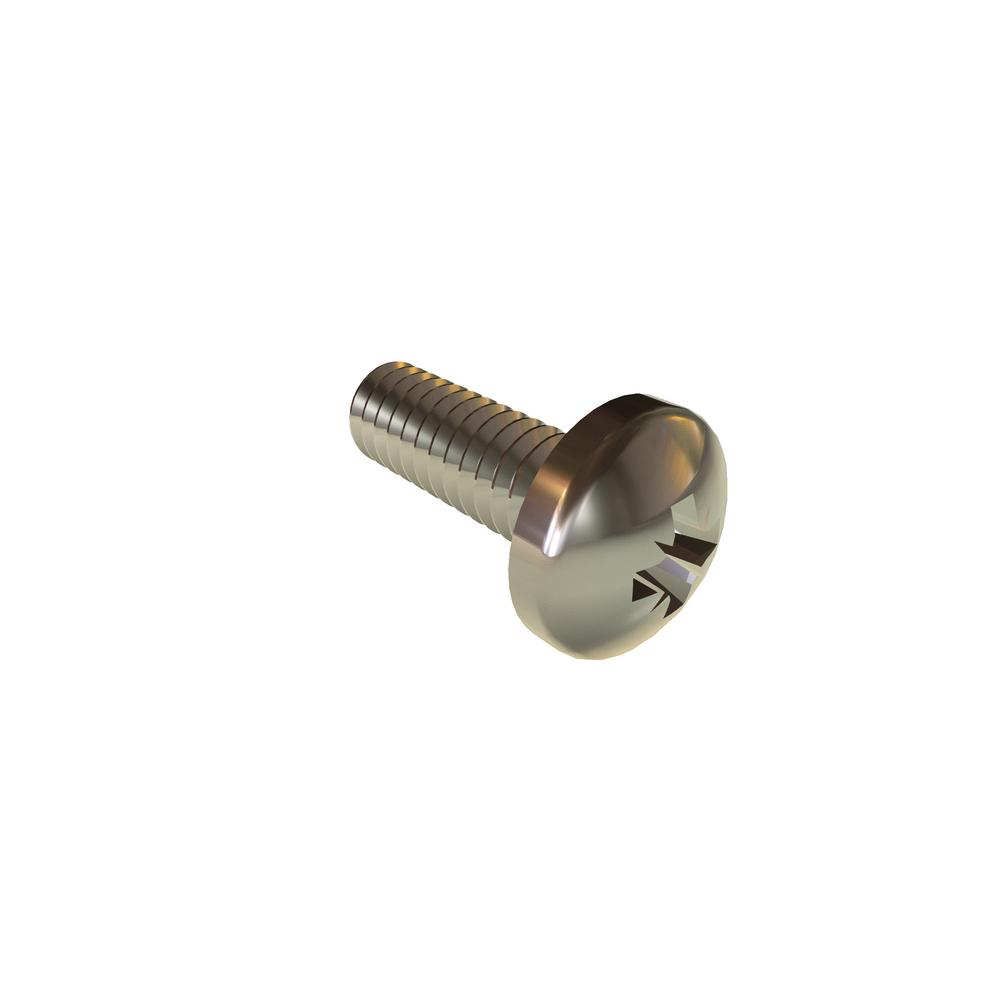

M2-.4 X 6 POZI PAN SST RoHS
.2C6ZPMS
| Item Id | .2C6ZPMS |
| Description | M2-.4 X 6 POZI PAN SST RoHS |
| Extended Description | M2-.4 X 6 POZI Pan Head Stainless Steel RoHS3 |
| Packaging | EA |
| Body Diameter (Max.) | 2.00 mm |
| Body Diameter (Min.) | 1.65 mm |
| Brand | VARIED |
| Drive Type | Pozi |
| Finish | Plain |
| Head Diameter (Max.) | 4.00 mm |
| Head Diameter (Min.) | 3.70 mm |
| Head Height (Max.) | 1.60 mm |
| Head Height (Min.) | 1.46 mm |
| Head Radius (Min.) | 3.20 mm |
| Head Type | Pan |
| Length | 6mm |
| Material | Stainless Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 2.00 mm |
| Recess Depth | 1.22 mm |
| Recess Diameter | 1.92 mm |
| RoHS | Compliant |
| Thread Size | M2x0.4 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
