  • Item Id: .2C8PFM3

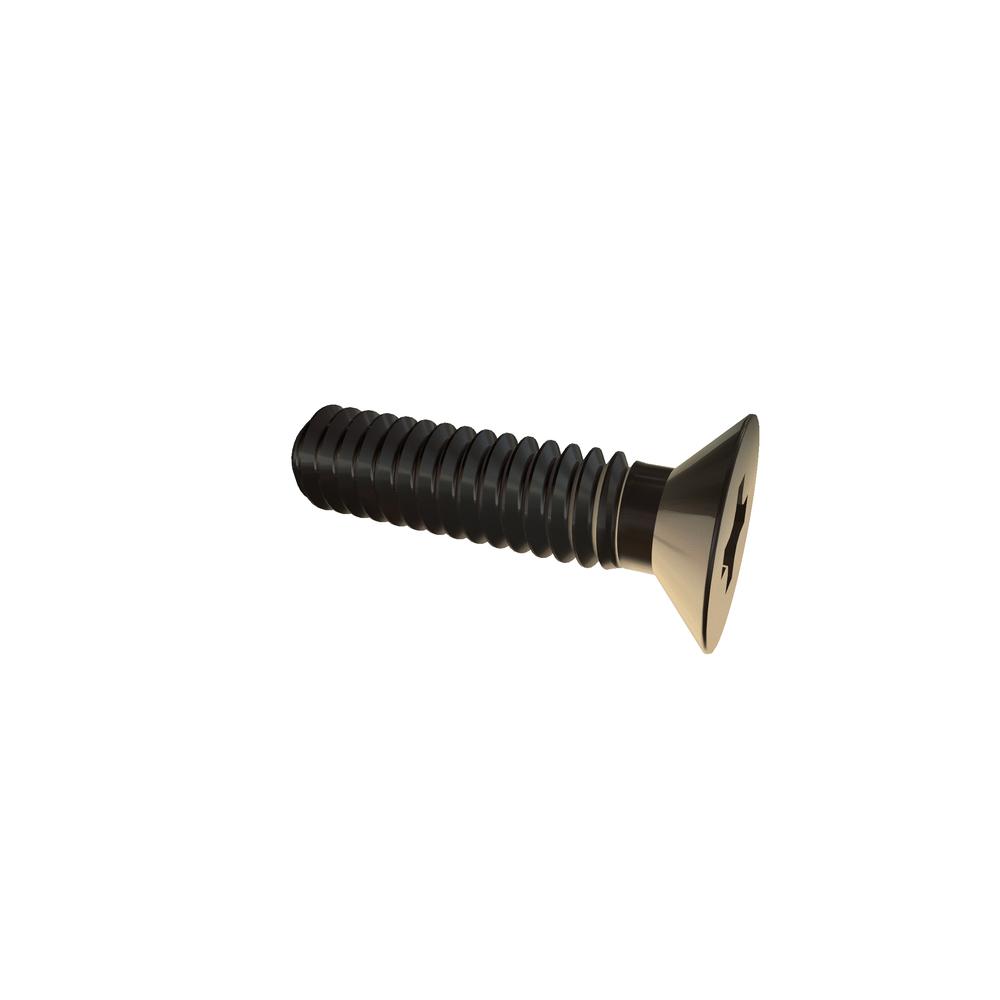

  • Description: M2-.4 X 8 PHIL FLAT 316 SST RoHS
  • Alternate Codes: 91801A109
  • Extended Description: DIN965
  • Quantity on Hand: 0
  • Packaging: EA
  • Please call your Olander Inside Sales Representative at (800) 538-1500 for pricing and availability details on this item. We are happy to assist you!
    Additional Industry Cross Reference91801A109
    Drive TypePhillips
    Head Diameter (Max.)3.80 mm
    Head Diameter (Min.)3.50 mm
    Head Height1.20 mm
    Head TypeFlat
    Material316 Stainless Steel
    Meets (Standard)ASME B18.6.7M
    Nominal Diameter2.00 mm
    Recess Depth1.54 mm
    Recess Diameter1.9 mm
    Recess Width0.53 mm
    Thread SizeM2x0.4
    Thread TypeMetric Coarse
