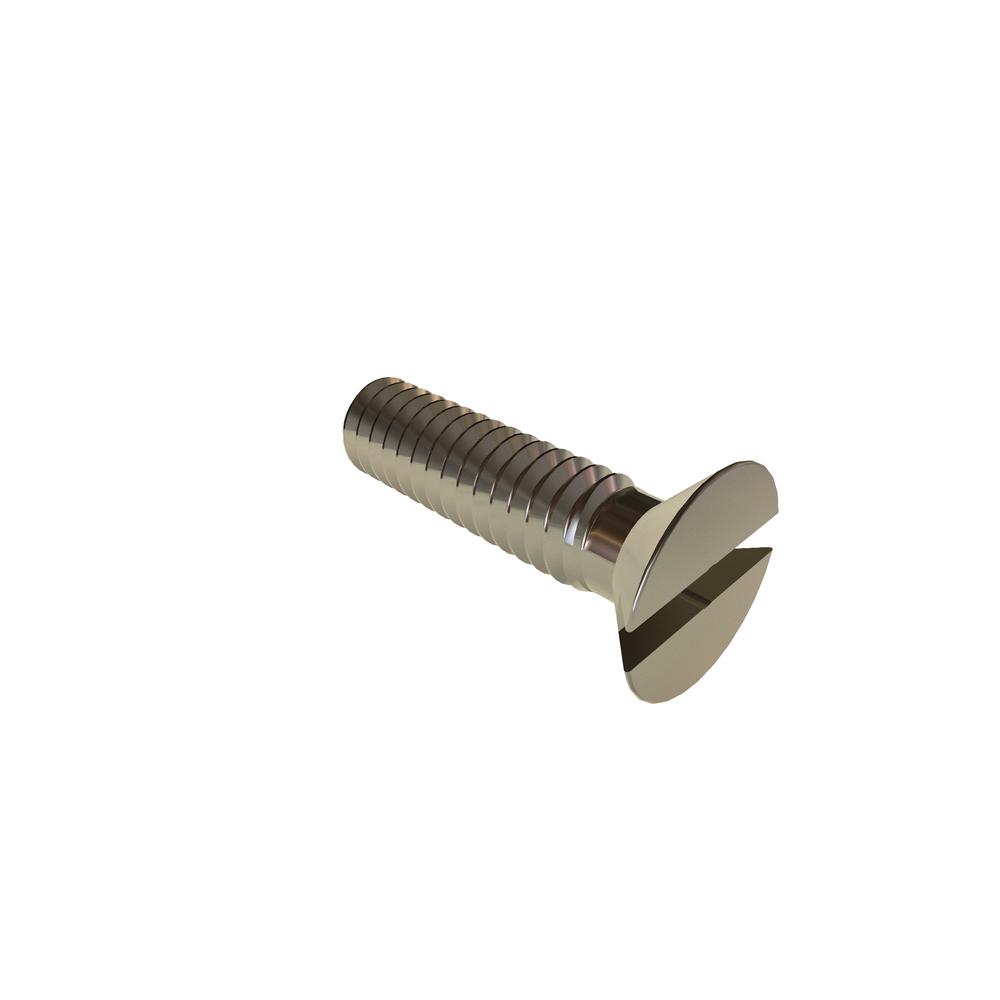

M2-.4 X 8 SLOT FLAT VENTED SST RoHS
.2C8SFMS/V
| Item Id | .2C8SFMS/V |
| Description | M2-.4 X 8 SLOT FLAT VENTED SST RoHS |
| Extended Description | 25 PER BAG |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Plain |
| Head Diameter (Max.) | 3.80 mm |
| Head Diameter (Min.) | 3.50 mm |
| Head Height | 1.20 mm |
| Length | 8mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 2.00 mm |
| Recess Depth (Max.) | 0.6 mm |
| Recess Depth (Min.) | 0.4 mm |
| RoHS | Compliant |
| Slot Depth (Max.) | 0.60 mm |
| Slot Depth (Min.) | 0.40 mm |
| Slot Width (Max.) | 0.70 mm |
| Slot Width (Min.) | 0.56 mm |
| Thread Size | M2x0.4 |
| Thread Type | Metric Coarse |
| Type | Flat Head Vented |
| Units | Metric |
| Vent Hole Diameter | 0.74 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
