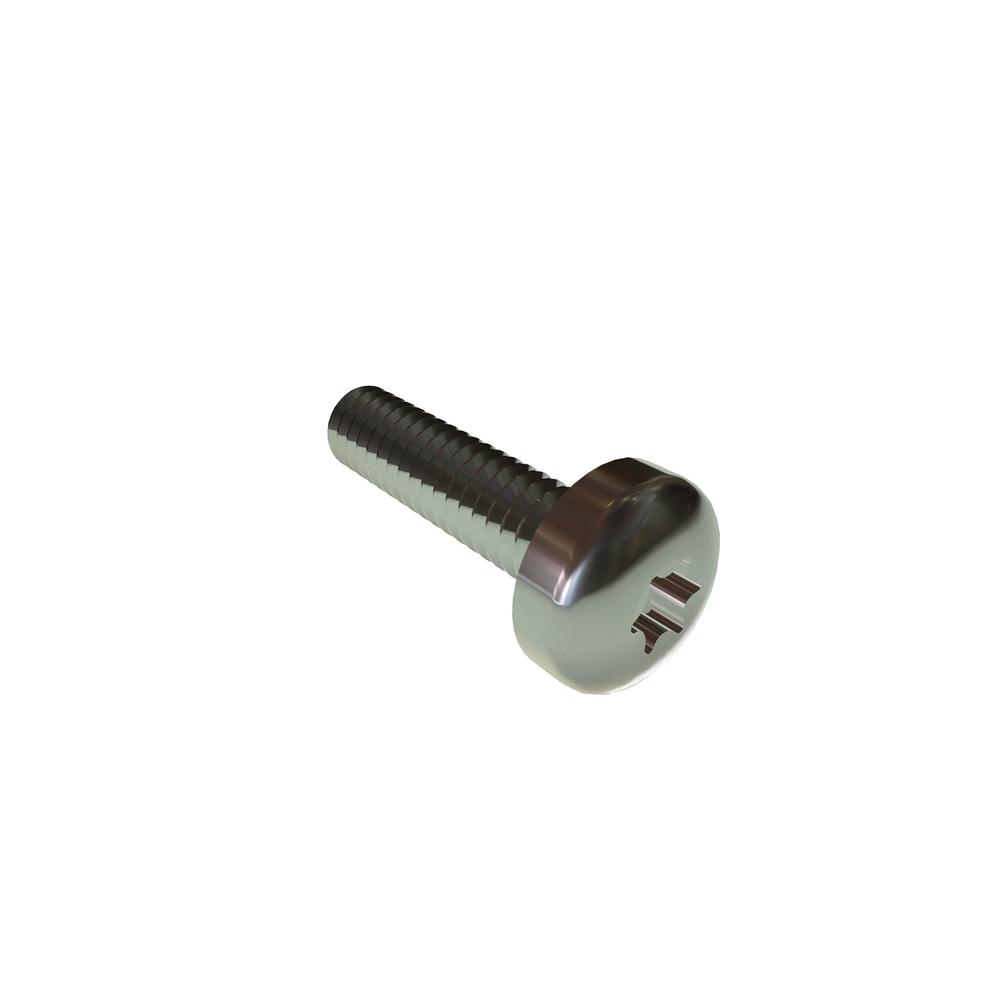

M2-.4 X 8 TORX PAN SST RoHS
.2C8XPMS
| Item Id | .2C8XPMS |
| Description | M2-.4 X 8 TORX PAN SST RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | T6 |
| Drive Type | Torx |
| Finish | Plain |
| Head Diameter (Max.) | 4.00 mm |
| Head Diameter (Min.) | 3.70 mm |
| Head Height (Max.) | 1.60 mm |
| Head Height (Min.) | 1.46 mm |
| Head Radius (Min.) | 3.20 mm |
| Head Type | Pan |
| Length | 8mm |
| Material | Stainless Steel |
| Meets (Standard) | ISO 14583 |
| Nominal Diameter | 2.00 mm |
| Recess Depth (Max.) | 0.77 mm |
| Recess Depth (Min.) | 0.63 mm |
| Recess Diameter | 1.7 mm |
| RoHS | Compliant |
| Thread Size | M2x0.4 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
