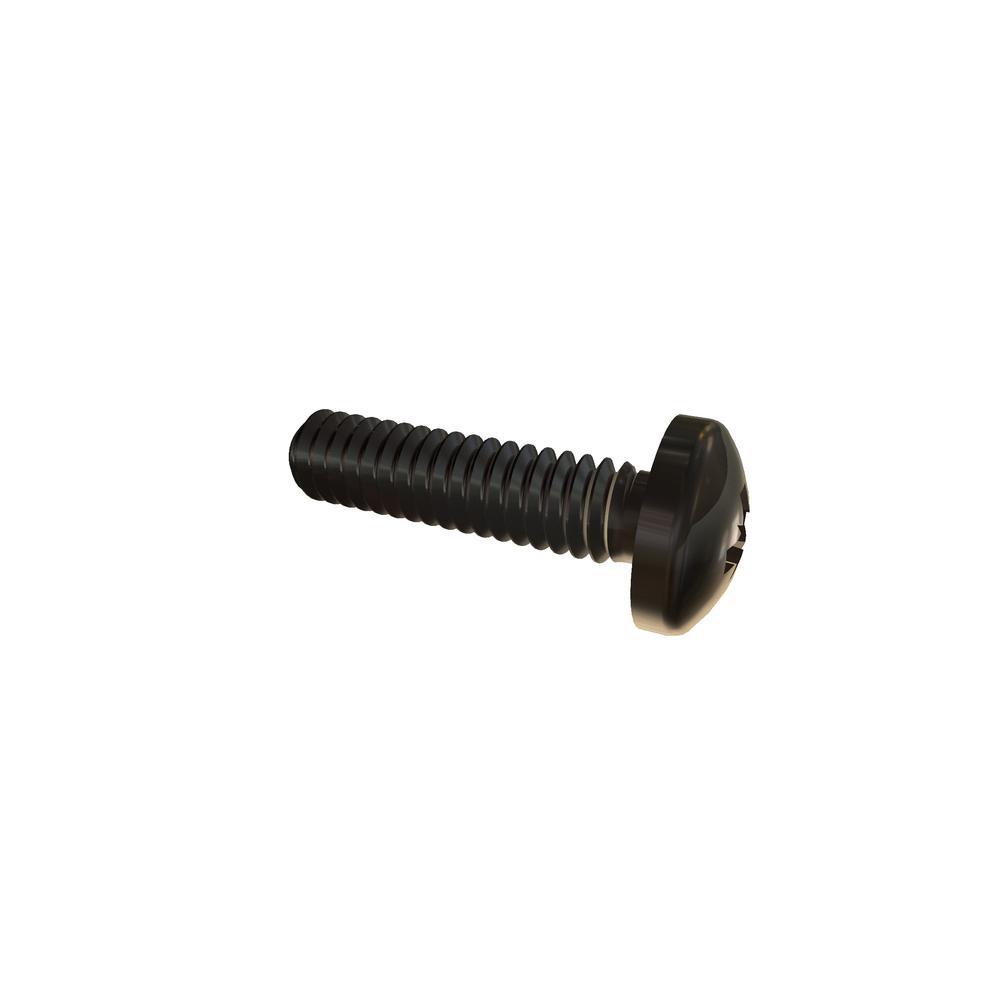

Image for reference purposes only. Actual product may vary.
.2C8ZPM3
M2-.4 X 8 POZI PAN 316 SST RoHS
Alternate Codes: N/A
M2-.4 X 8 Pozi Pan 316 Stainless Steel RoHS
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|
| $0.141 | $0.085 | $0.071 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 8mm |
| Thread Size | M2x0.4 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Pozi |
| Material | 316 Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 2.00 mm |
| Head Type | Pan |
| Recess Diameter | 1.92 mm |
| Head Radius (Min.) | 3.20 mm |
| Body Diameter (Min.) | 1.65 mm |
| Recess Depth | 1.22 mm |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 2.00 mm |
| Head Diameter (Max.) | 4.00 mm |
| Head Diameter (Min.) | 3.70 mm |
| Head Height (Max.) | 1.60 mm |
| Head Height (Min.) | 1.46 mm |
