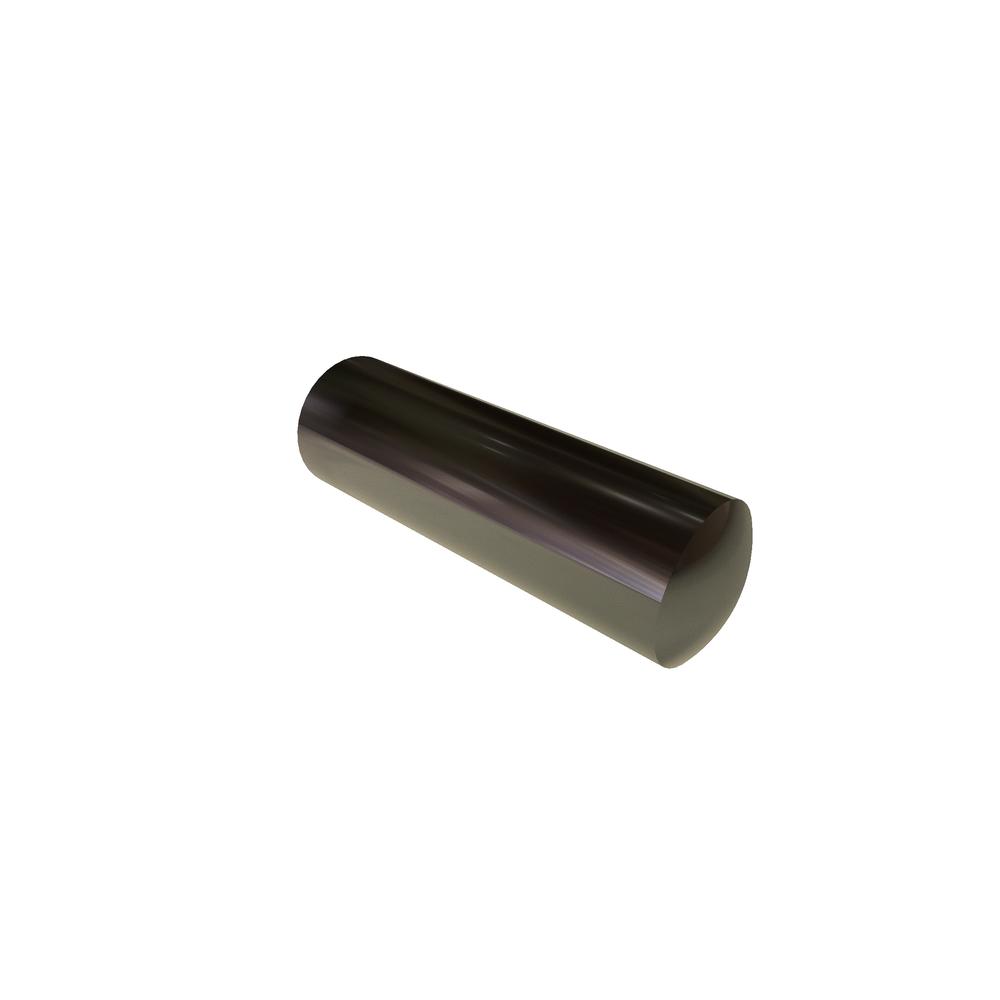

M2 X 16 DOWEL PIN ISO2338-m6 316SST RoHS
.2R16DOW3/M6
| Item Id | .2R16DOW3/M6 |
| Description | M2 X 16 DOWEL PIN ISO2338-m6 316SST RoHS |
| Alternate Codes | .2R16DOW3 |
| Extended Description | flat ends; measurement is overall length of pin |
| Packaging | EA |
| Additional Industry Cross Reference | ISO2338 93600A233 |
| Brand | VARIED |
| Corner radius | 0.20 mm |
| Heat Treat | Hardened |
| Heat Treat | Unhardened |
| Length | 16mm |
| Material | 316 Stainless Steel |
| Nominal Diameter | 2mm |
| Nominal Diameter | 69 |
| Pin Diameter (Max.) | 2.008mm |
| Pin Diameter (Min.) | 2.002mm |
| Tolerance | 78 Countersink |
| Tolerance | m6 |
| Type | Press Fit |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
