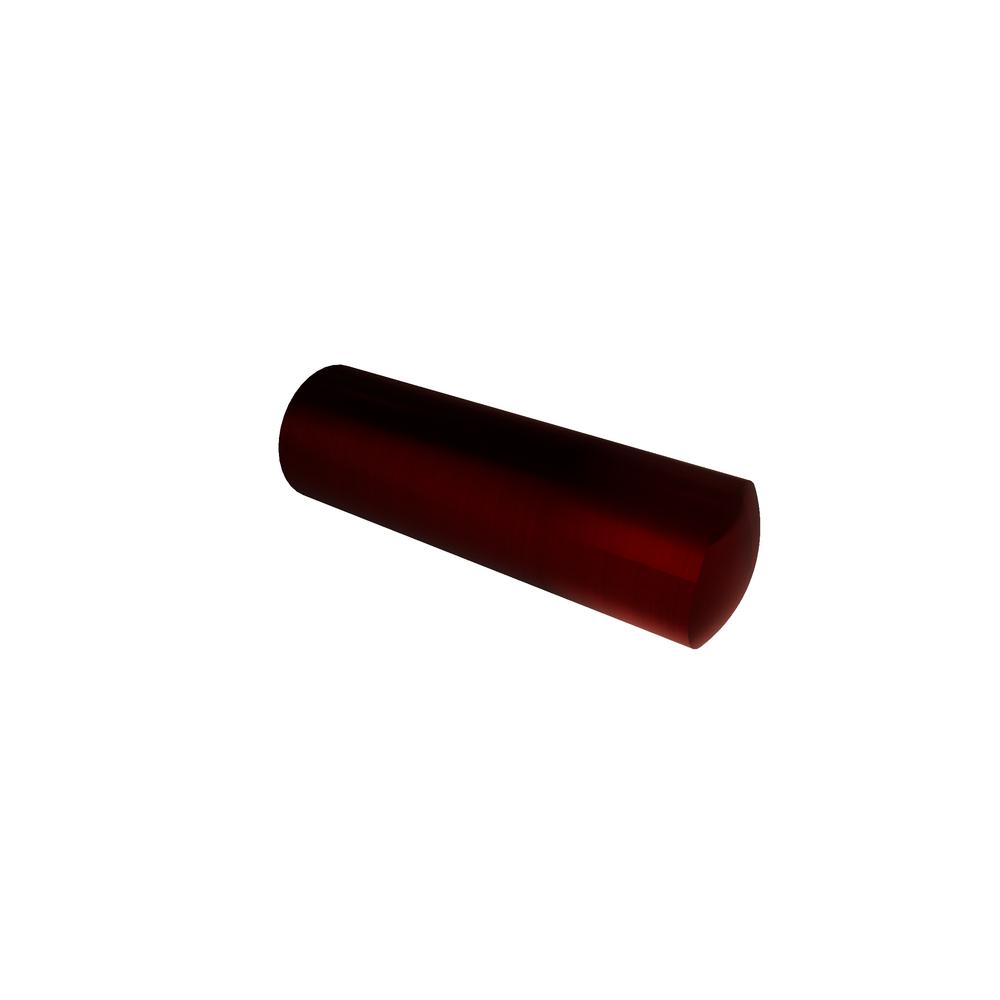

M2 X 4 DOWEL PIN ALLOY
.2R4DOWA
| Item Id | .2R4DOWA |
| Description | M2 X 4 DOWEL PIN ALLOY RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | DIN6325 |
| Brand | VARIED |
| Heat Treat | Hardened |
| Length | 4mm |
| Material | Alloy Steel |
| Nominal Diameter | 2mm |
| Pin Diameter (Max.) | 2.008mm |
| Pin Diameter (Min.) | 2.002mm |
| Point Diameter (Max.) | 1.90 mm |
| Point Diameter (Min.) | 1.70 mm |
| Tolerance | 10.8 0.25 mm |
| Tolerance | m6 |
| Type | Press Fit |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
