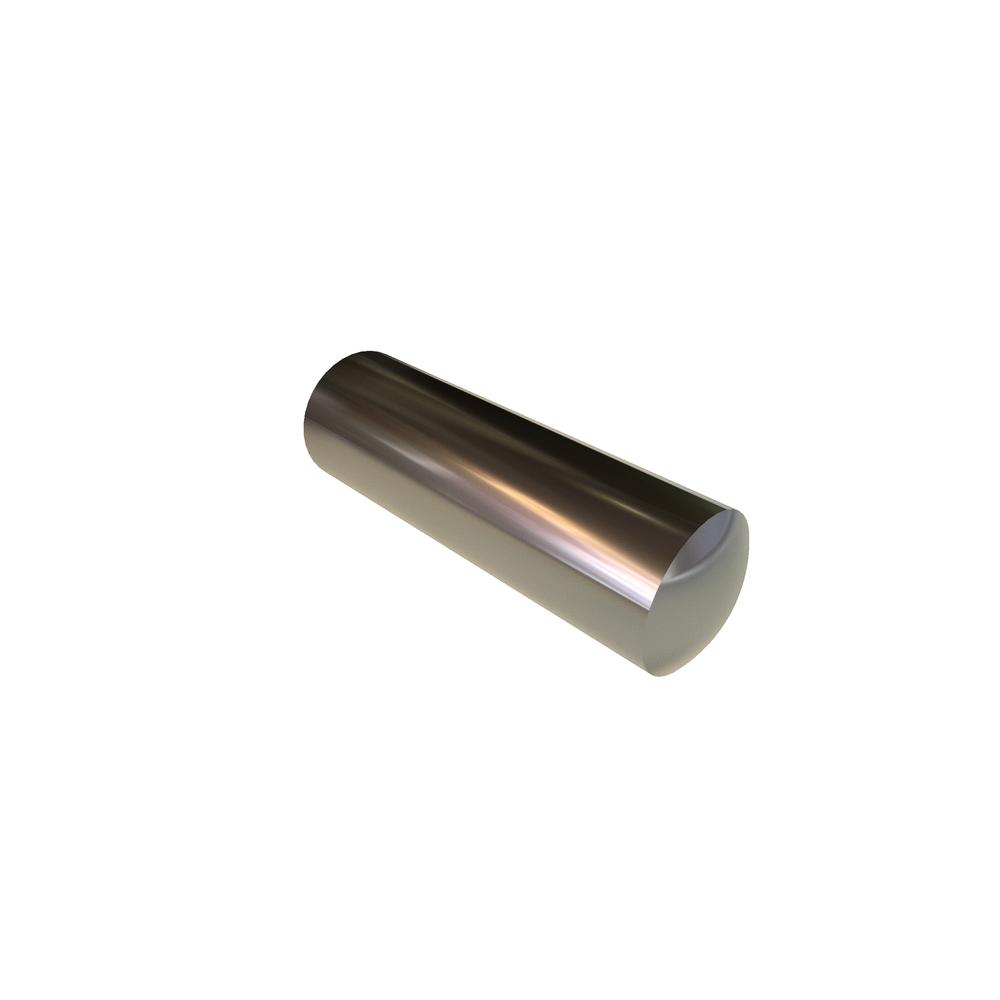

M2 X 5 DOWEL PIN DIN7-m6 SST RoHS
.2R5DOWS/DIN7
Item Id | .2R5DOWS/DIN7 |
Description | M2 X 5 DOWEL PIN DIN7-m6 SST RoHS |
Extended Description | "length of pin does not include the crowns, only the length that conforms to the diameter" |
Packaging | EA |
Additional Industry Cross Reference | DIN7 |
Brand | VARIED |
Corner radius | 0.20 mm |
Heat Treat | Unhardened |
Length | 5mm |
Material | 300 Stainless Steel |
Nominal Diameter | 2mm |
Pin Diameter (Max.) | 2.008mm |
Pin Diameter (Min.) | 2.002mm |
Point Diameter | 1.9 mm |
RoHS | Compliant |
Tolerance | Fixture - 5 min.Full - 24 hrs. |
Tolerance | m6 |
Type | Press Fit |
Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
