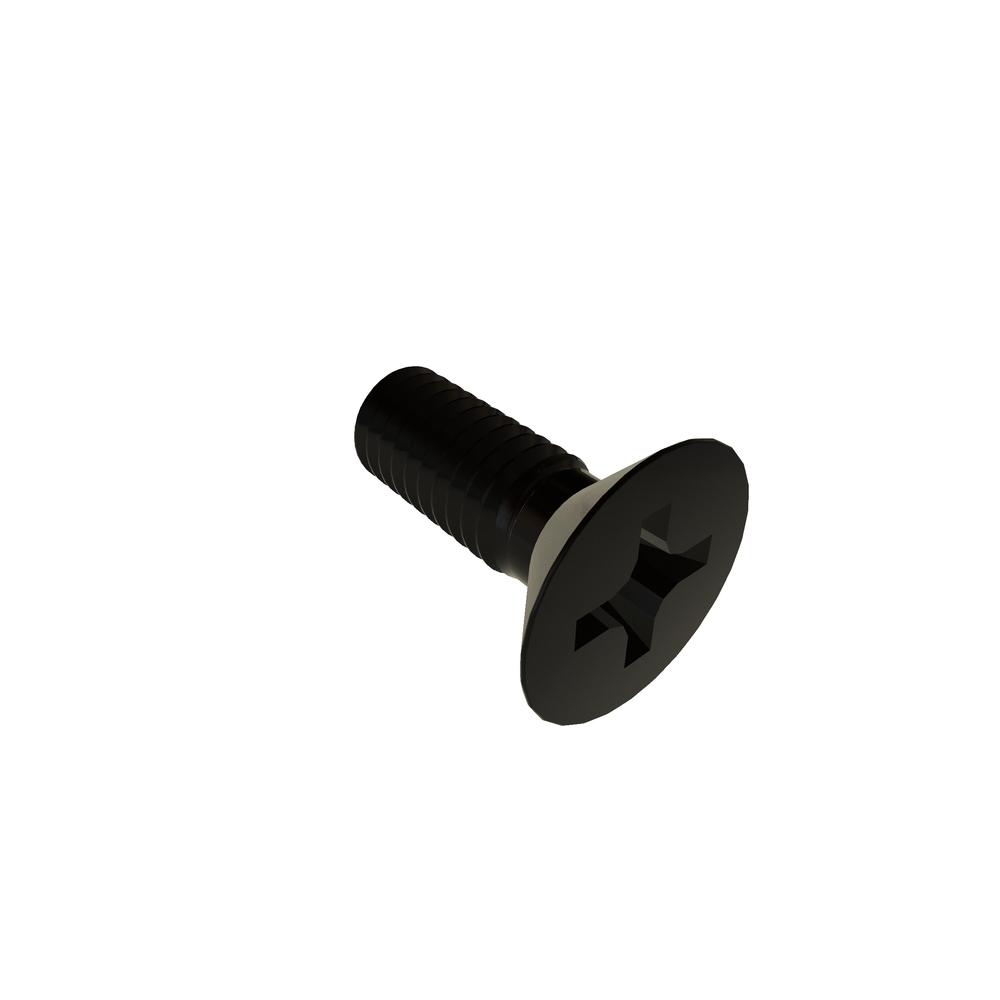

Image for reference purposes only. Actual product may vary.
.35S10PFMZB
M3.5-.6 X 10 PHIL FLAT STL BLK RoHS
Alternate Codes: 1900-0030, 73-H254-00
M3.5-.6 X 10 Phillips Flat Head DIN965 Steel Black Oxide RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M3.5x0.6 |
| Length | 10mm |
| Drive Type | Phillips |
| Material | Steel |
| Finish | Black Oxide |
| Brand | VARIED |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.50 mm |
| Head Type | Flat |
| Drive Size | 2 |
| Recess Diameter | 4.06 mm |
| Head Height | 2.30 mm |
| Recess Depth | 2.25 mm |
| Recess Width | 0.91 mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 7.30 mm |
| Head Diameter (Min.) | 6.94 mm |
