.35S13PFMS
M3.5-.6 X 13 PHIL FLAT SST RoHS
Alternate Codes: .35S13PFMS/ISO7046

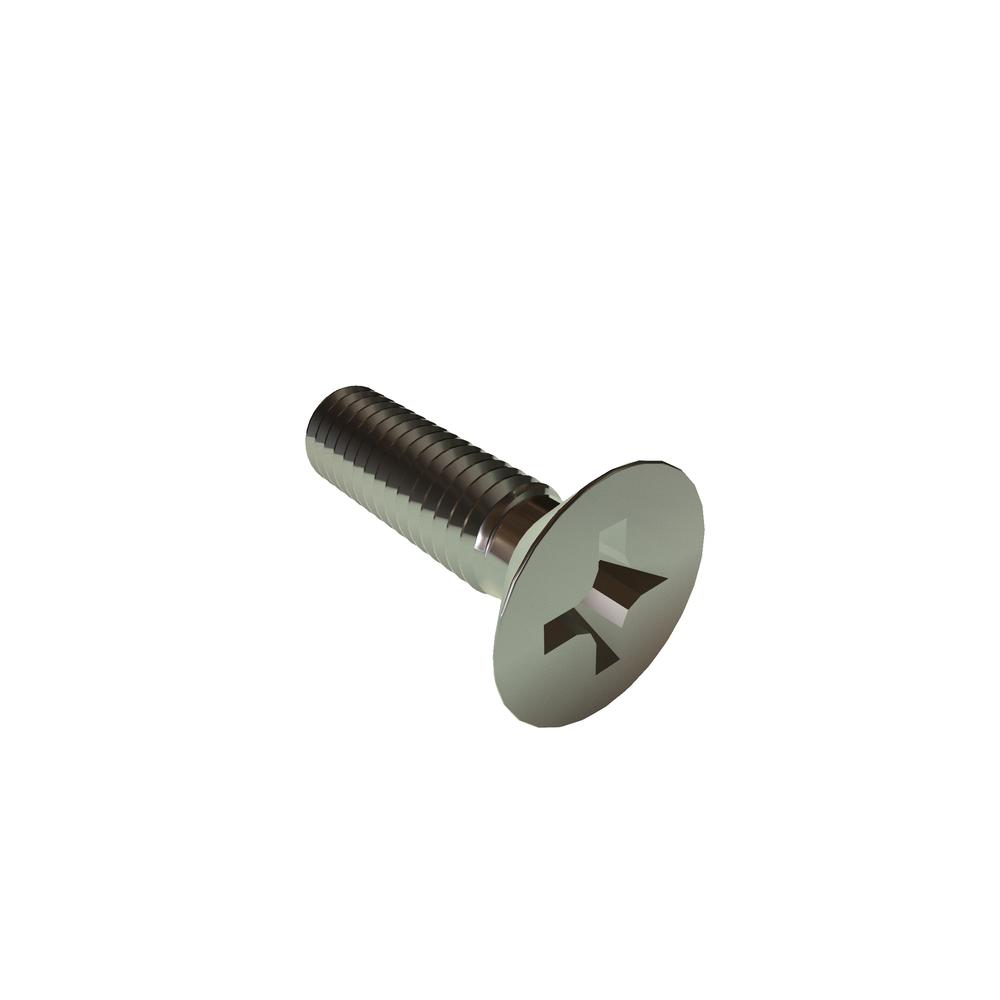

M3.5-.6 X 13 Phillips Flat Head ISO 7046 Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $1.200 | $0.764 | $0.701 | $0.646 | $0.545 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M3.5x0.6 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.50 mm |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 4.06 mm |
| Head Height | 2.30 mm |
| Recess Depth | 2.25 mm |
| Recess Width | 0.91 mm |
| Brand | VARIED |
| Length | 13mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 7.30 mm |
| Head Diameter (Min.) | 6.94 mm |
