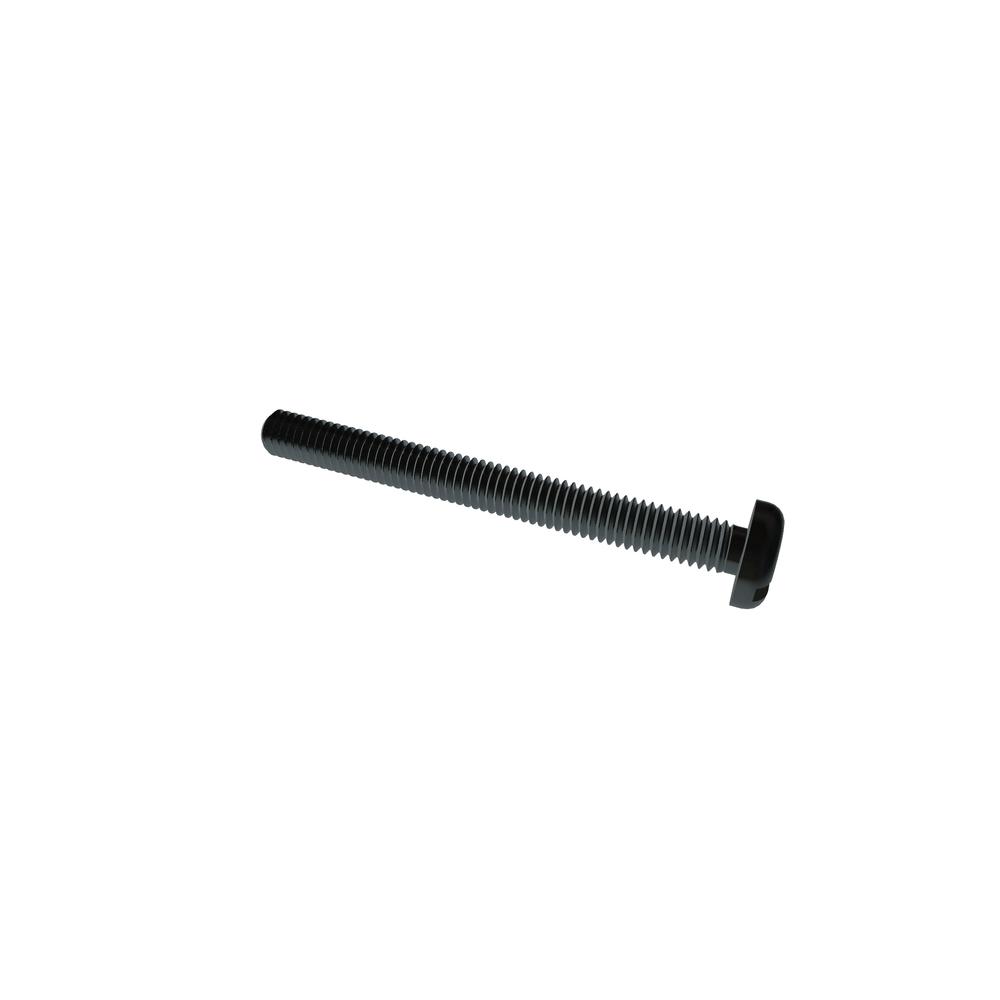

Image for reference purposes only. Actual product may vary.
.35S35SPMZR
M3.5-.6 X 35 SLOT PAN HD STL ZN CR3
Alternate Codes: N/A
M3.5-.6 X 35 Slot Pan Head Head Steel Zinc RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 35mm |
| Thread Size | M3.5x0.6 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Drive Type | Slotted |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.50 mm |
| Head Type | Pan |
| Head Radius (Min.) | 1.40 mm |
| Slot Depth (Min.) | 0.80 mm |
| Slot Width (Min.) | 1.00 mm |
| Slot Width (Max.) | 1.20 mm |
| Body Diameter (Min.) | 3.00 mm |
| Additional Industry Cross Reference | 90353A182 |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 3.50 mm |
| Head Diameter (Max.) | 7.00 mm |
| Head Diameter (Min.) | 6.60 mm |
| Head Height (Max.) | 2.10 mm |
| Head Height (Min.) | 1.90 mm |
