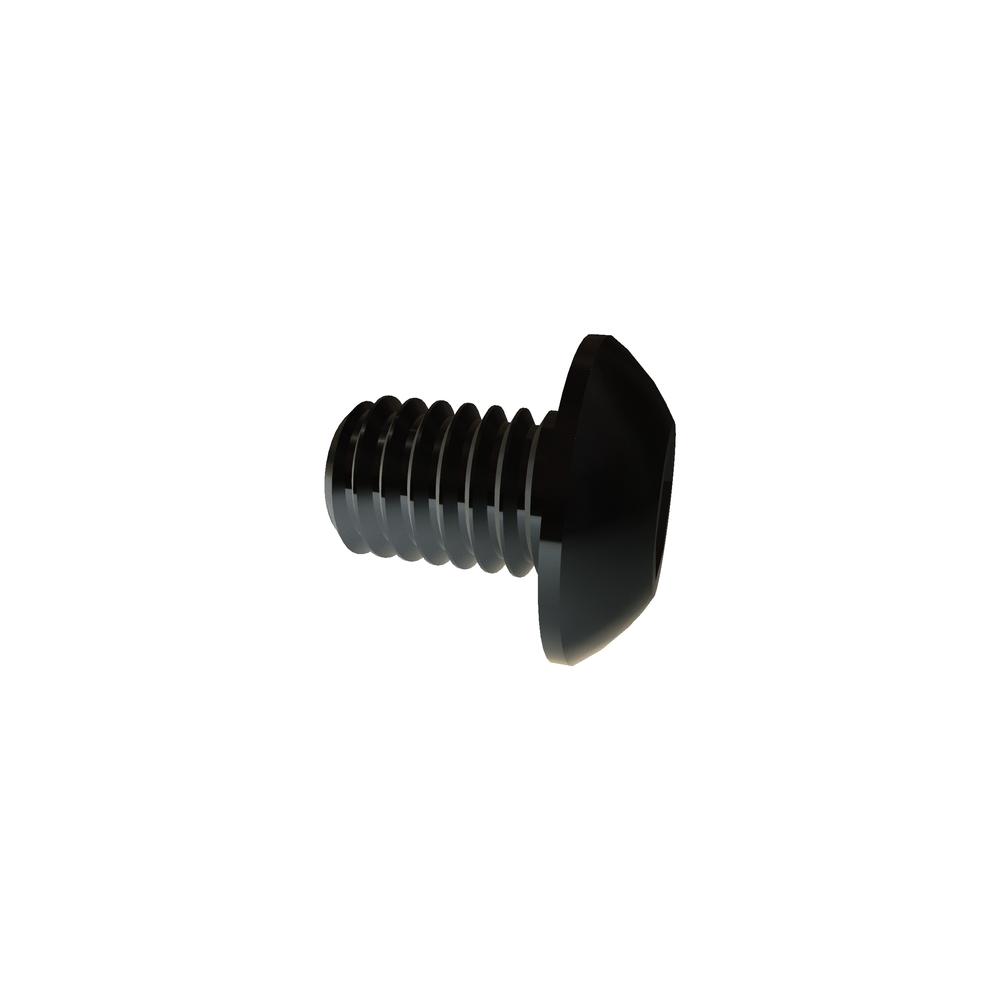

Image for reference purposes only. Actual product may vary.
.35S5BHCA
M3.5-.6 X 5 BUT SOC ALLOY
Alternate Codes: N/A
M3.5-.6 X 5 Button Socket ISO 7380 10.9 Alloy RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.214 | $0.112 | $0.089 | $0.082 | $0.069 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In stock
| Nominal Diameter | 3.5 mm |
| Length | 5mm |
| Thread Size | M3.5x0.6 |
| Finish | Plain |
| Material | Alloy Steel |
| Head Type | Button |
| Drive Type | Hex Socket |
| Head Height (Max.) | 1.93 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Fillet Transition Diameter (Min.) | 3.76 mm |
| Fillet Transition Diameter (Max.) | 4.01 mm |
| Head Side Height (Ref.) | 0.38 mm |
| Key Engagement | 1.30 mm |
| Brand | VARIED |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 6.65 mm |
| Head Diameter (Min.) | 6.29 mm |
| Head Height (Min.) | 1.60 mm |
| Hex Socket Size | 2.50 mm |
