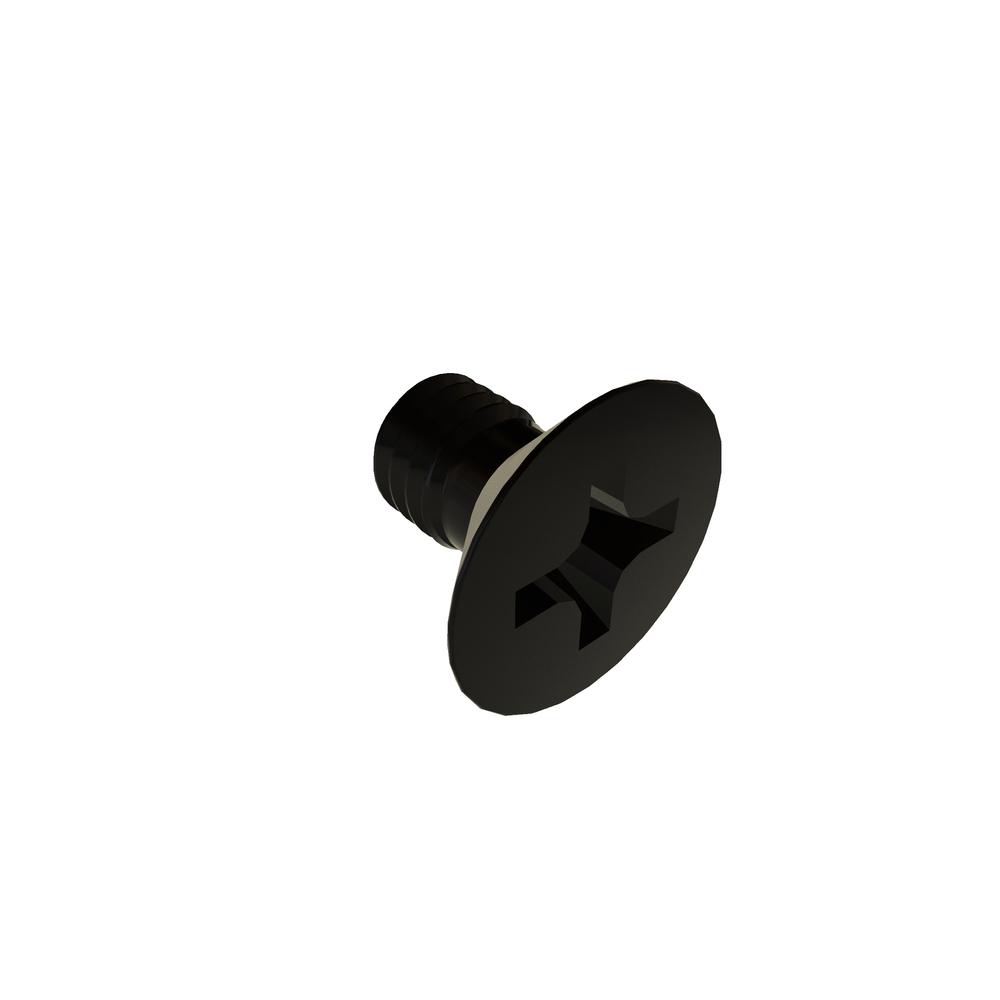

M3.5-.6 X 6 PHIL FLAT STL BLK RoHS
.35S6PFMZB
| Item Id | .35S6PFMZB |
| Description | M3.5-.6 X 6 PHIL FLAT STL BLK OX RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Black Oxide |
| Head Diameter (Max.) | 7.30 mm |
| Head Diameter (Min.) | 6.94 mm |
| Head Height | 2.30 mm |
| Head Type | Flat |
| Length | 6mm |
| Material | Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 3.50 mm |
| Recess Depth | 2.25 mm |
| Recess Diameter | 4.06 mm |
| Recess Width | 0.91 mm |
| RoHS | Compliant |
| Thread Size | M3.5x0.6 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
