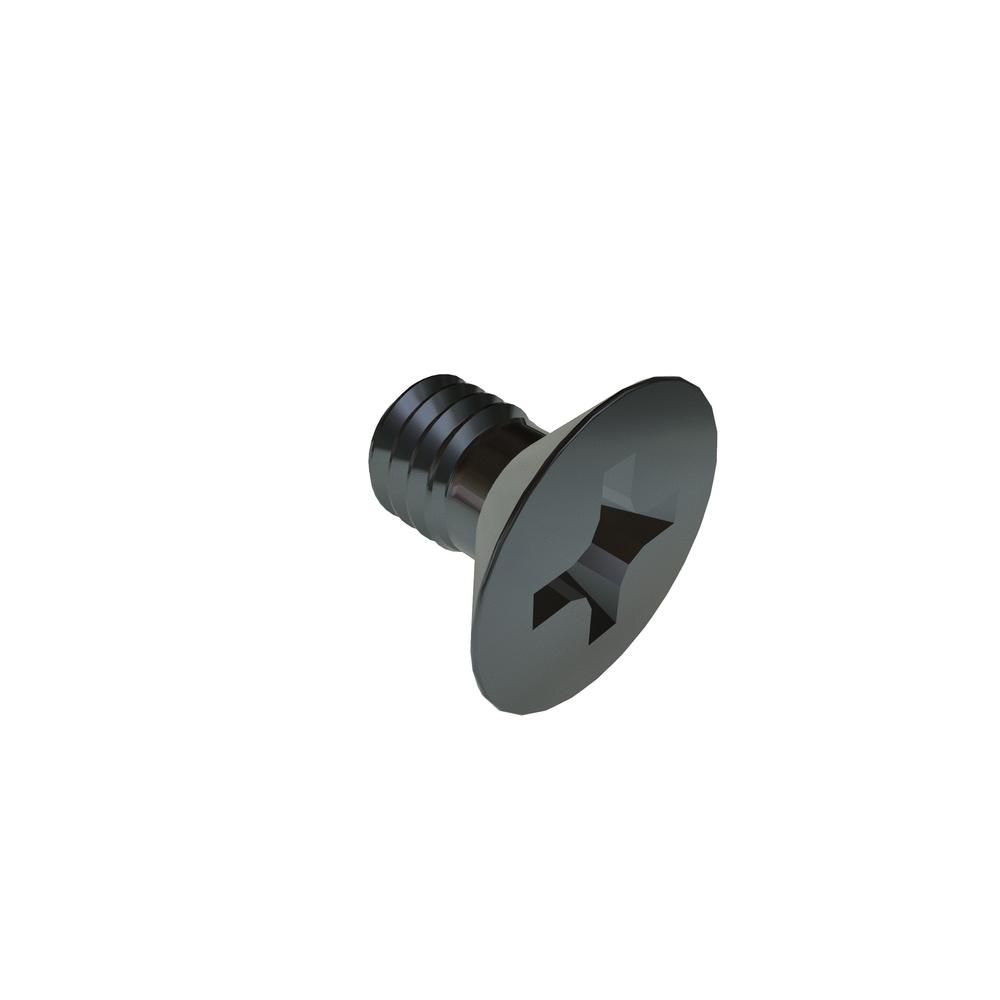

.35S6PFMZR/P
M3.5-.6 X 6 PHIL FLAT PATCH STL ZN
Alternate Codes: N/A
CR3 RoHS
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M3.5x0.6 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.50 mm |
| Head Type | Flat |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 4.06 mm |
| Head Height | 2.30 mm |
| Recess Depth | 2.25 mm |
| Recess Width | 0.91 mm |
| Brand | VARIED |
| Length | 6mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 7.30 mm |
| Head Diameter (Min.) | 6.94 mm |
